Insulated Aluminum 5000 Series

Slide title

5212 in Polar White with SlimLine windows

Button
5710 in Polar White
5280 in Polar White

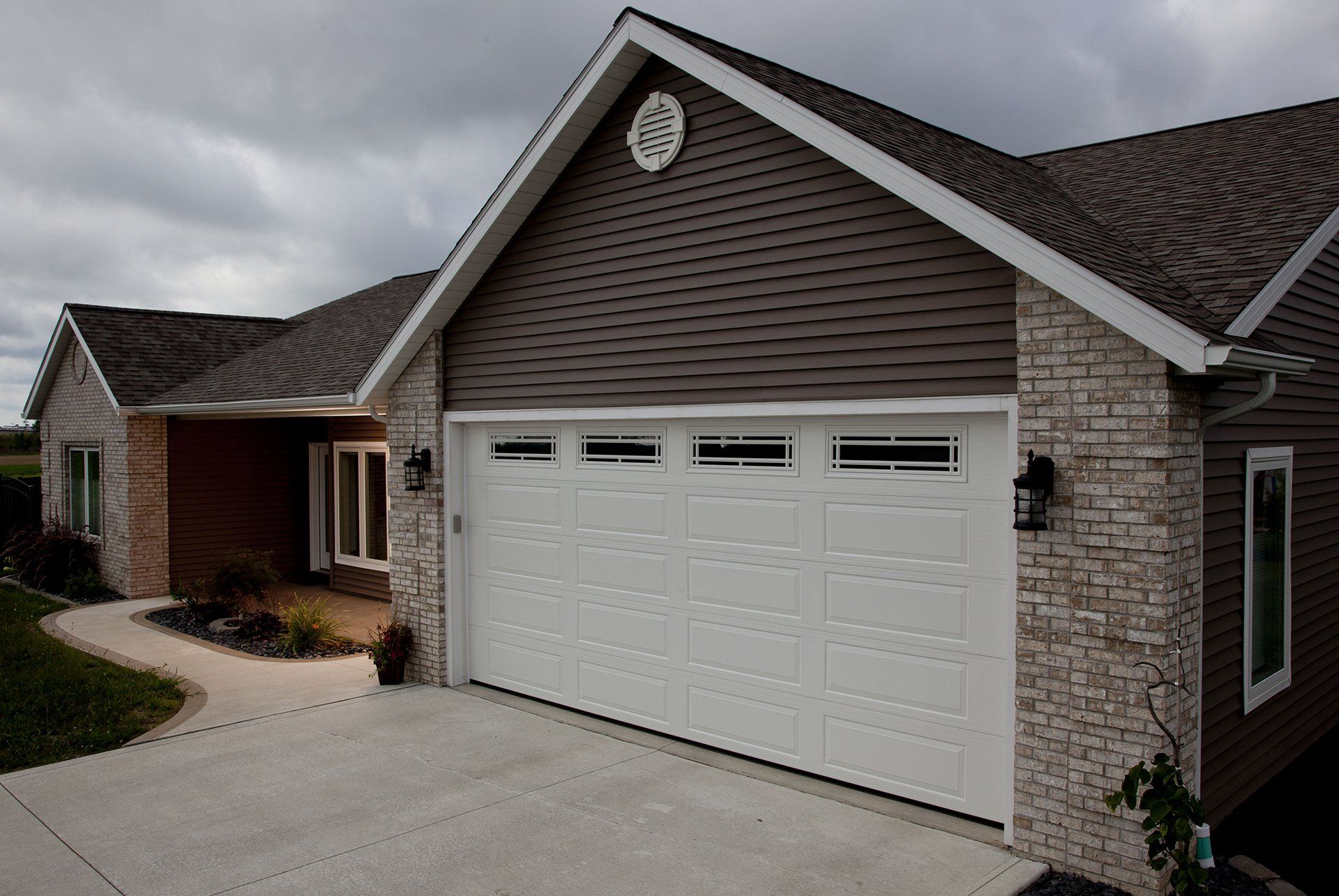

5270 in Polar White with Ranch Prairie windows
Slide title

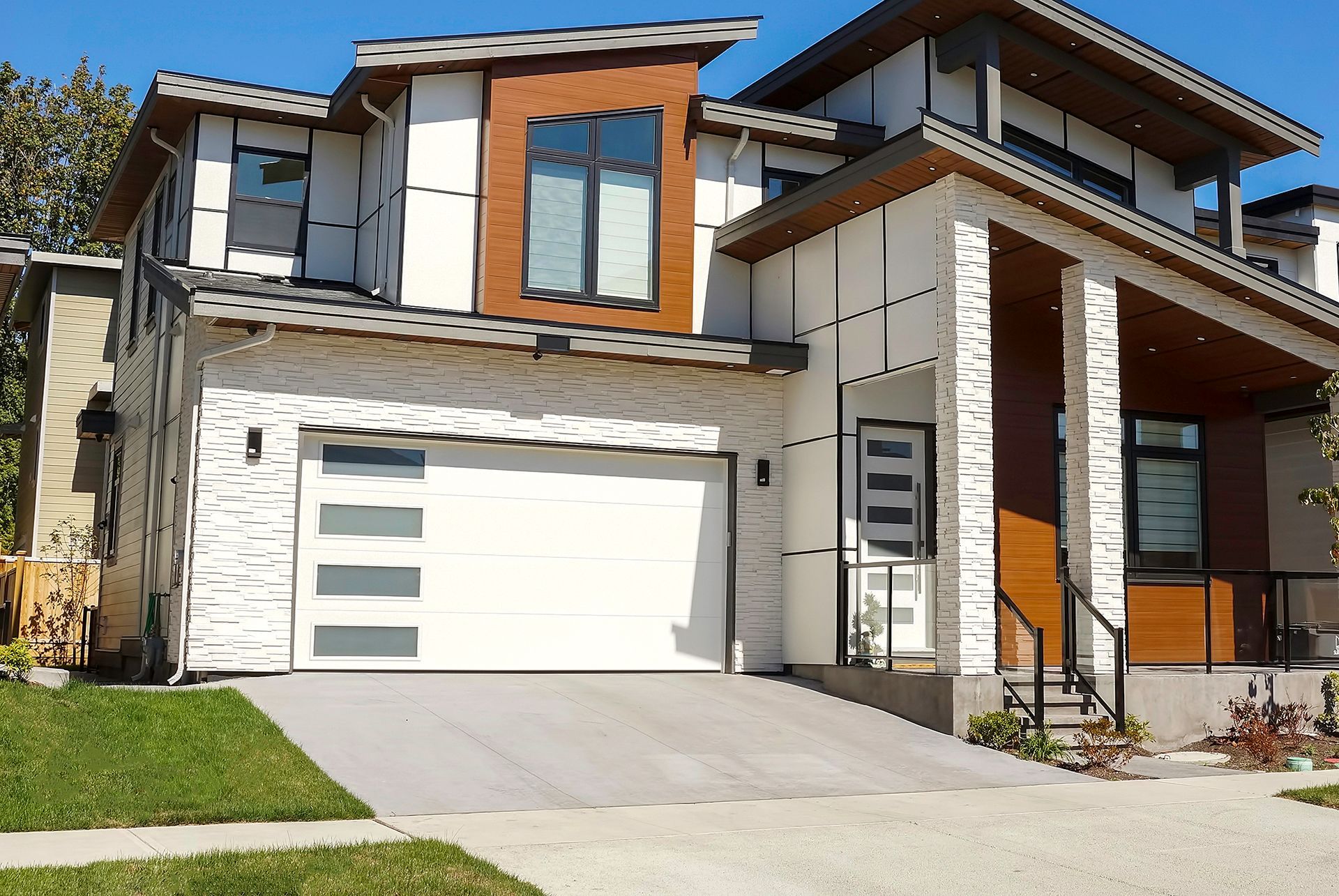

5210 in Polar White with Carriage House windows

Button

A Superior Alternative.

INSULATED ALUMINUM 5000 SERIES

Mother Nature throws some pretty nasty weather at your home. That's why we created the Insulated Aluminum 5000 Series; to give you the strength of an insulated garage door combined with long-lasting and corrosion-resistant aluminum. The 5000 Series doors feature a tough, durable and weather-resistant paint finish, and are backed by a Limited Lifetime Warranty.

2” or 1-3/4" Thick with Full Thermal Break
0.110 Tested U-Factor (5200 Models); 0.097 Tested U-Factor (5700 Models)
Environmentally Compliant Polyurethane Insulation
Corrosion-Resistant Aluminum
Air Infiltration Joint Seal (5200 Models)
Available with Wind Load and Impact Options

4 Panel Options
36 Window Options
Available with Decorative Glass
Available with SelectView Options
Stucco Embossed
Lifetime Delamination Warranty
10-Year Finish
6-Year Hardware
3-Year Spring

CREATE YOUR DOOR LEARN MORE

Tested U-Factor validated by DASMA Thermal Performance Verification Program

5000 SERIES MODELS

Flush Stucco Panel

5210/5710 - All Windows

V-Groove Stucco Panel

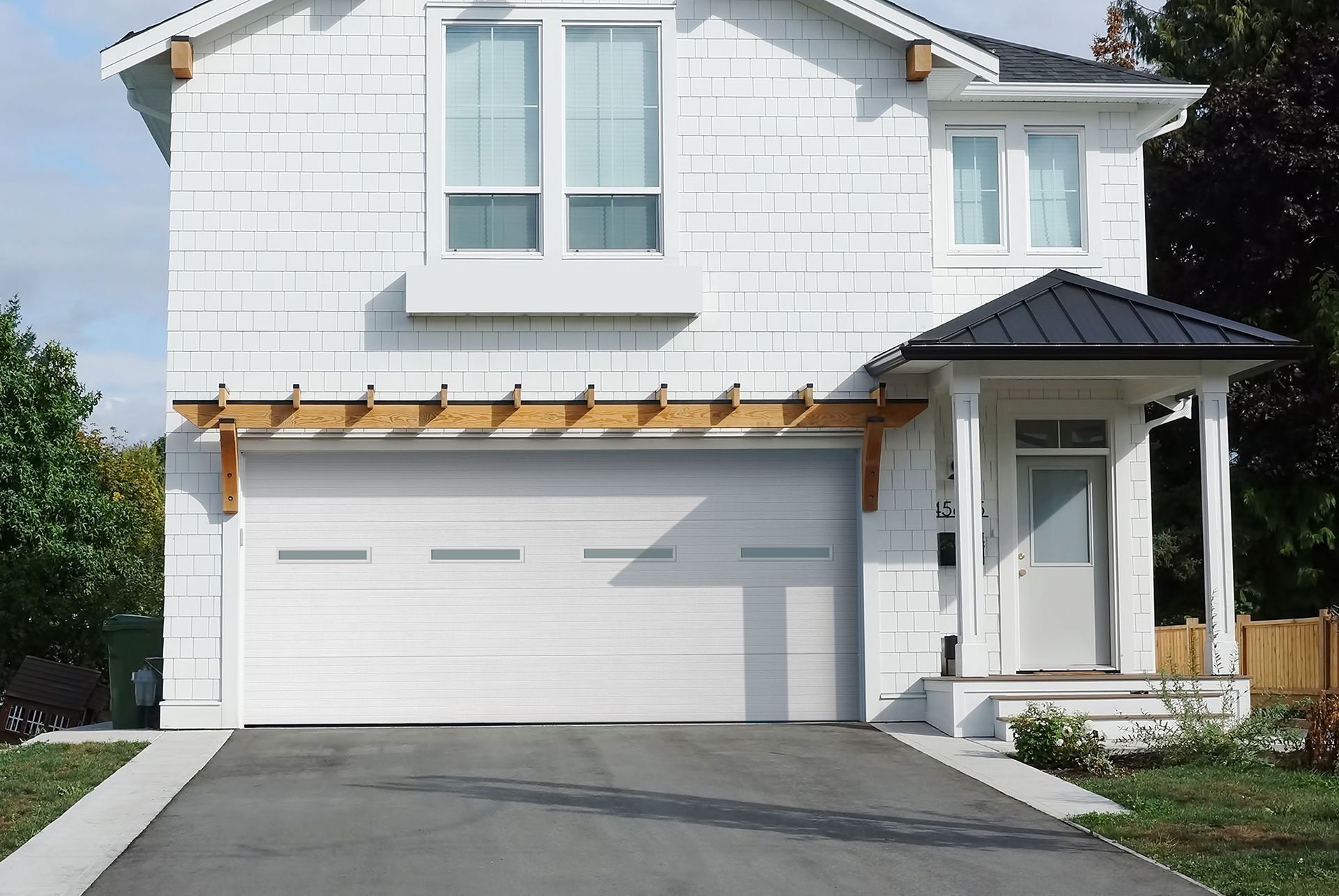

5212/5712 - TL Windows

Raised Ranch Stucco Panel

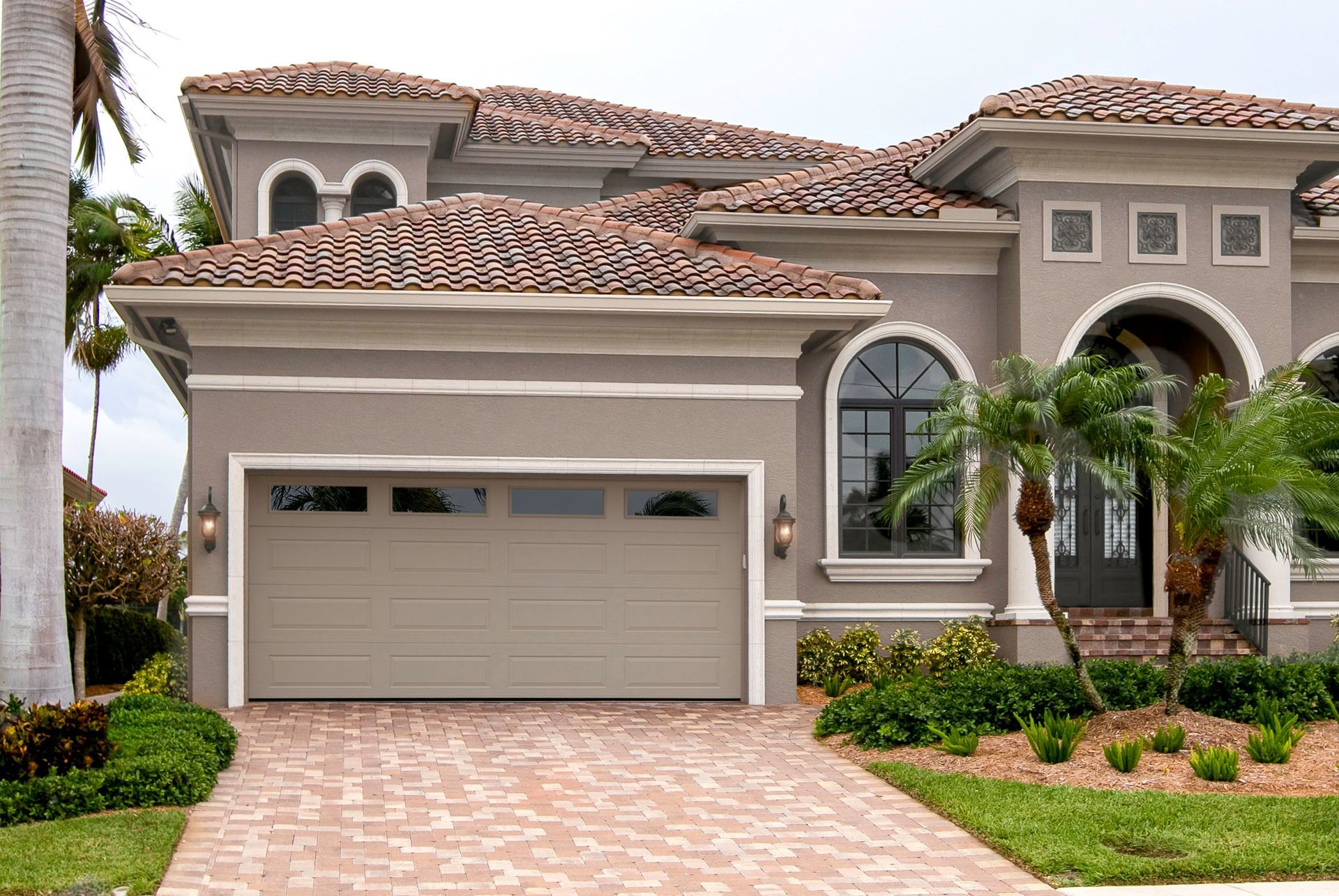

5270/5770 - Ranch Windows

5267/5767 - Carriage House Windows

5287/5787 - Standard Windows

Raised Standard Stucco Panel

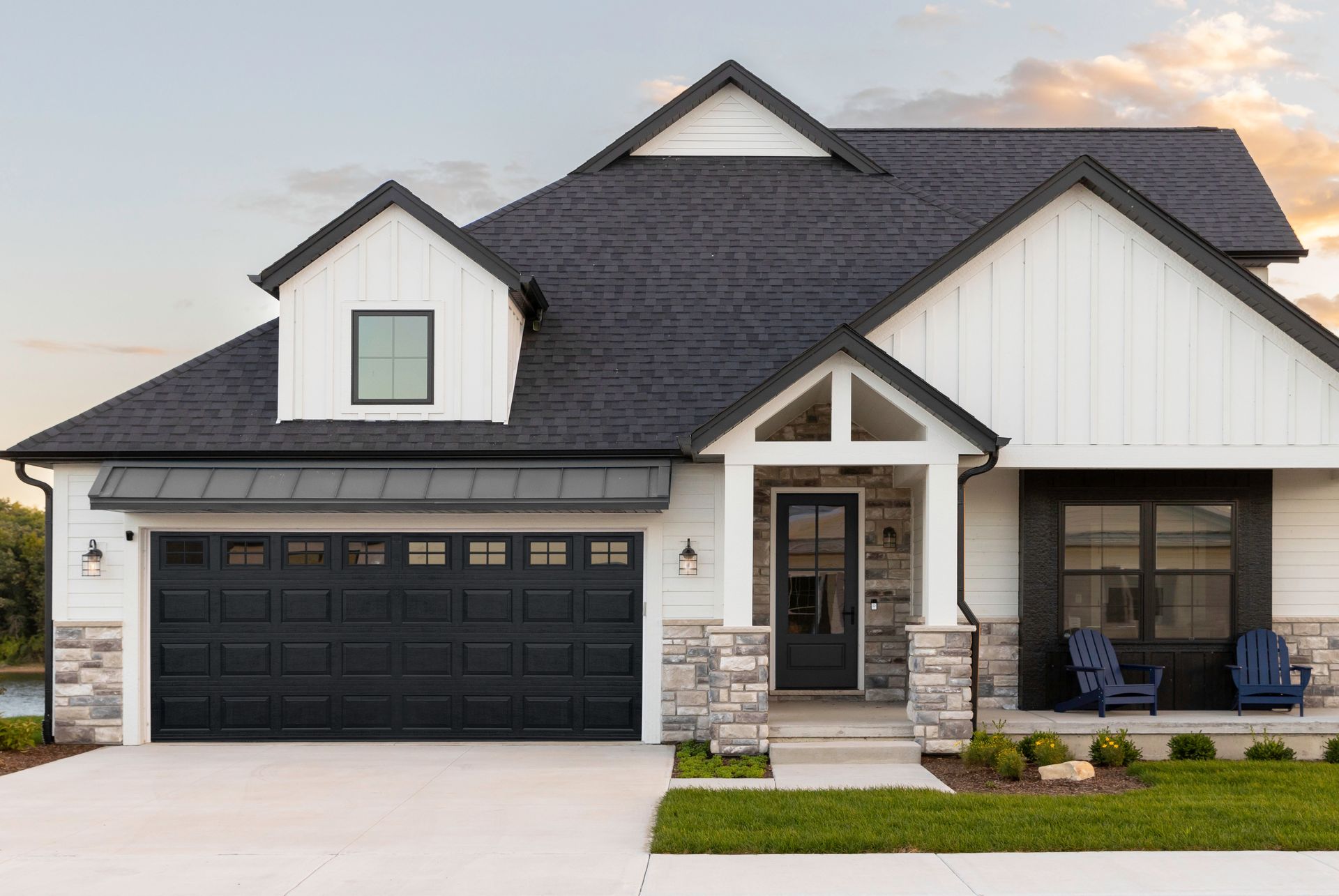

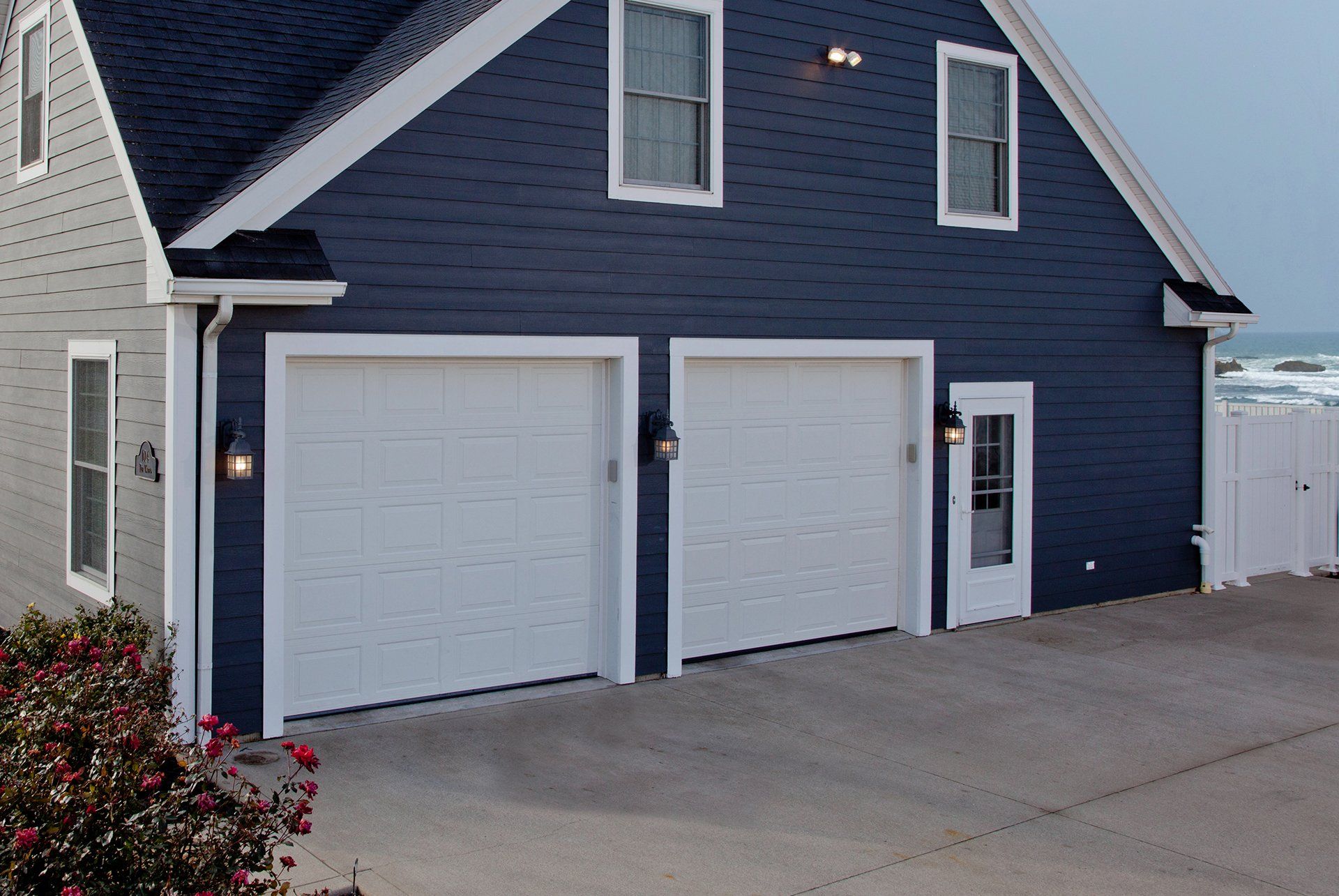

5280/5780 - Standard Windows

5268/5768 - Carriage House Windows

5278/5778 - Ranch Windows

COLOR OPTION

Polar White

Button

Color shown is not exact due to differences in monitors. For accurate color samples, contact a Haas Door dealer for a color selector.

DECORATIVE GLASS OPTIONS (more info)

Some glass options may be temporarily unavailable.

Please check with your dealer for real time availability.

Clear/Clear

Button
Clear/Frosted

Button

INSULATED GLASS OPTIONS (more info)

Some glass options may be temporarily unavailable. Please check with your dealer for real time availability.

Clear/Clear

Button
Light Gray/Clear
Button
Dark Gray/Clear
Button
Bronze/Clear
Button
Dark Gray/Dark Gray
Button
Clear/Frosted

Button
Light Gray/Frosted
Button
Dark Gray/Frosted
Button
Bronze/Frosted
Button
Clear/Low-E
Button
Clear/SolarShield
Button
Obscure/Clear
Button
Obscure/Frosted
Button
*Translucent Mirror (Dark in Garage)
Button
*Translucent Mirror (Light in Garage)
Button

*Translucent Mirror glass option appearance varies greatly depending on light location. When the inside of the garage is dark, it allows the mirror properties of the glass to show, and strong reflection happens, limiting opacity. However, when it is lighter inside the garage than outside, the glass becomes mostly transparent.

NON-INSULATED GLASS OPTIONS (more info)
(5700 Series only)

Some glass options may be temporarily unavailable. Please check with your dealer for real time availability.

Care instructions for non-insulated Frosted Glass.

Clear

Button
Light Gray
Button
Dark Gray
Button
Bronze
Button
Clear Lexan
Button
Frosted

Button
Obscure
Button

TECHNICAL INFORMATION

The 5000 Series is available with Decorative Glass options. Three decorative designs. Insulated tempered glass with design on third surface. Opacity levels ranging from clear to moderately opaque. Available for Carriage House, Ranch and Standard Series windows.
Button
The 5000 Series provides maximum energy efficiency by using environmentally compliant polyurethane foam insulation. This means a 0.110 Tested U-Factor for 5200 models and 0.097 Tested U-Factor for 5700 models.

Button
A full thermal break is used in the tongue-and-groove construction of all 5000 series doors. These rigid vinyl top and bottom caps seal the joints and minimizes metal-to-metal contact, which limits the transfer of temperature. 5200 model doors include air infiltration seals, which exceed the ASHRAE 90.1 standard when installed with standard bottom seal and commonly available vinyl door stop.
Button

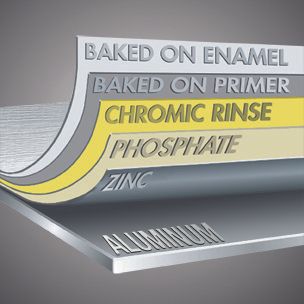

The 5000 Series doors have an embossed stucco exterior and feature a tough, durable and weather-resistant paint finish.
Button

The 5000 Series is also available in a wide range of design pressures for wind load requirements. Contact your local Haas Door dealer for more information about wind load requirements in your area.

Button
Exterior & interior skins are made of aluminum to assure protection from warping, rotting and rusting. Heavy 20-gauge back-up plates extend the full height of each section to give superior hardware support.
Button
A heavy bottom weather seal that flexes to fit the contour of the floor is included on all of our 5000 series doors. This combination of protection seals out the elements and repels the most hostile weather conditions.
Button
Impact polycarbonate is available in Clear with UV rating, Dark Gray, Bronze, Frosted, and Pebble. Polycarbonate requires special cleaning methods. See below for instructions.
