Insulated Steel 600 Series
Strong, Efficient and Attractive.

INSULATED STEEL 600 SERIES

When your major considerations include energy efficiency, noise buffering and beauty, a Haas Insulated Steel 600 Series commercial door will exceed your expectations. These doors feature environmentally compliant polyurethane foam injected between the door panel skins to provide strength and durability. A unique, multi-component paint system and sturdy hardware provide years of dependable performance.
  • 1-3/8”-Thick Environmentally Compliant Polyurethane
  • 0.106 Tested U-Factor
  • 26-Gauge Galvanized Steel
  • Full Thermal Break
  • Available with Wind Load and Impact Options
  • Available with SelectView Options
  • 24 Color Options
  • 10-Year Rust-Through & Delamination Warranty
  • 10-Year Finish, 12-Year for Plank Options
  • 1-Year Hardware
  • 1-Year Spring
  • 2” or 3” track
  • Double steel end stiles
  • Exhaust port
  • Cam safety device
  • Spring bumpers
  • Chain hoist
  • High cycle springs
  • High cycle rollers
  • Wind load rating
  • Glazing (windows)
  • Keyed lock
  • Operator Options Available
Technical Spec Sheets

Tested U-Factor validated by DASMA Thermal Performance Verification Program

600 SERIES MODELS
Door Specs
Section Skins & End Stiles
Color & Window Options
0.106 Tested U-Factor
Max Height:  18'-2"
Max Width: 16'-0"
Inside: 26 GA V Groove Woodgrain Steel
Outside: 26 GA Flush Woodgrain Steel
Extruded End Cap
All colors except
bi-directional woodgrains
0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 26 GA V Groove Woodgrain Steel
Outside: 26 GA V Groove Woodgrain Steel
Extruded End Cap
All colors except plank options &
bi-directional woodgrains
0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 26 GA V Groove Woodgrain Steel
Outside: 26 GA Flush Woodgrain Steel
Steel End Stiles
All colors except
bi-directional woodgrains
0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 26 GA V Groove Woodgrain Steel
Outside: 26 GA V Groove Woodgrain Steel
Steel End Stiles
All colors except plank options &
bi-directional woodgrains
0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 26 GA V Groove Woodgrain Steel
Outside: 20 GA Flush Smooth Steel
Steel End Stiles
Polar White & Brown
0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 26 GA V Groove Woodgrain Steel
Outside: 20 GA V Groove Smooth Steel
Steel End Stiles
Polar White & Brown
0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 20 GA V Groove Smooth Steel
Outside: 20 GA Flush Smooth Steel
Steel End Stiles
Polar White & Brown
0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 20 GA V Groove Smooth Steel
Outside: 20 GA V Groove Smooth Steel
Steel End Stiles
Polar White & Brown
0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 26 GA V Groove Woodgrain Steel
Outside: 26 GA Ribbed Short Panel Woodgrain Steel
Extruded End Cap
All colors except plank options

0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 26 GA V Groove Woodgrain Steel
Outside: 26 GA Recessed Short Panel Woodgrain Steel
Extruded End Cap
All colors except plank options

0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 26 GA V Groove Woodgrain Steel
Outside: 26 GA Recessed Long Panel Woodgrain Steel
Extruded End Cap
All colors except plank options

0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 26 GA V Groove Woodgrain Steel
Outside: 26 GA Ribbed Long Panel Woodgrain Steel
Extruded End Cap
All colors except plank options

0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 26 GA V Groove Woodgrain Steel
Outside: 26 GA Raised Ranch Panel Woodgrain Steel
Extruded End Cap
All colors except plank options

0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 26 GA V Groove Woodgrain Steel
Outside: 26 GA Raised Standard Panel Woodgrain Steel
Extruded End Cap
All colors except plank options

0.106 Tested U-Factor
Max Height: 18'-2"
Max Width: 16'-0"
Inside: 26 GA V Groove Woodgrain Steel
Outside: 26 GA Raised Sculptured Panel Woodgrain Steel
Extruded End Cap
All colors except plank options

Note: Certain weights and/or applications may limit the size allowed
600 SERIES DOOR MODELS
Model/Spec Sheet Panel Tested U-Factor Max Width Max Height End Stile Interior Skin Exterior Skin Colors Windows
610 0.106 18’-2” 16’-0” Extruded
End Cap		 26 GA V-Groove
Woodgrain Steel		 26 GA Flush
Woodgrain Steel		 All Colors except
Bi-Directional wood grains
Window Options
612 0.106 18’-2” 16’-0” Extruded
End Cap		 26 GA V-Groove
Woodgrain Steel		 26 GA V-Groove
Woodgrain Steel		 All Colors except Plank options &
Bi-Directional wood grains
Window Options

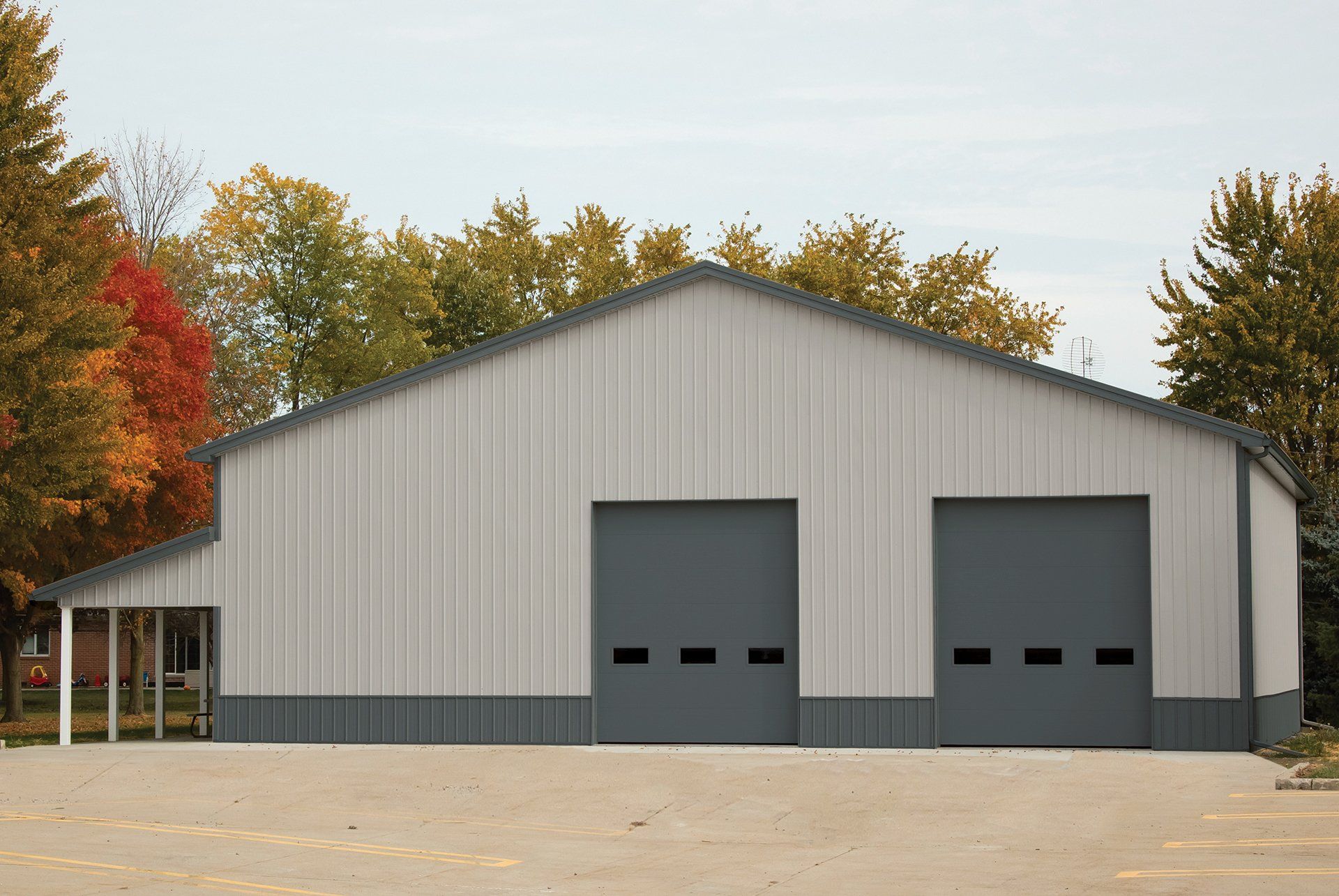

614 0.106 18’-2” 16’-0”

16 GA
Steel

 26 GA V-Groove
Woodgrain Steel		 26 GA Flush
Woodgrain Steel		 All Colors except
Bi-Directional wood grains
Window Options
616 0.106 18’-2” 16’-0” 16 GA
Steel		 26 GA V-Groove
Woodgrain Steel		 26 GA V-Groove
Woodgrain Steel		 All Colors except Plank options &
Bi-Directional wood grains
Window Options
632 0.106 18’-2” 16’-0” 16 GA
Steel		 26 GA V-Groove
Woodgrain Steel		 20 GA Flush
Smooth Steel		 Polar White & Brown
 Window Options
633 0.106 18’-2” 16’-0” 16 GA
Steel		 26 GA V-Groove
Woodgrain Steel		 20 GA V-Groove
Smooth Steel		 Polar White & Brown
 Window Options
632-20 0.106 18’-2” 16’-0” 16 GA
Steel		 20 GA V-Groove Smooth Steel 20 GA Flush
Smooth Steel		 Polar White & Brown
 Window Options
633-20 0.106 18’-2” 16’-0” 16 GA
Steel		 20 GA V-Groove Smooth Steel 20 GA V-Groove
Smooth Steel		 Polar White & Brown
Window Options

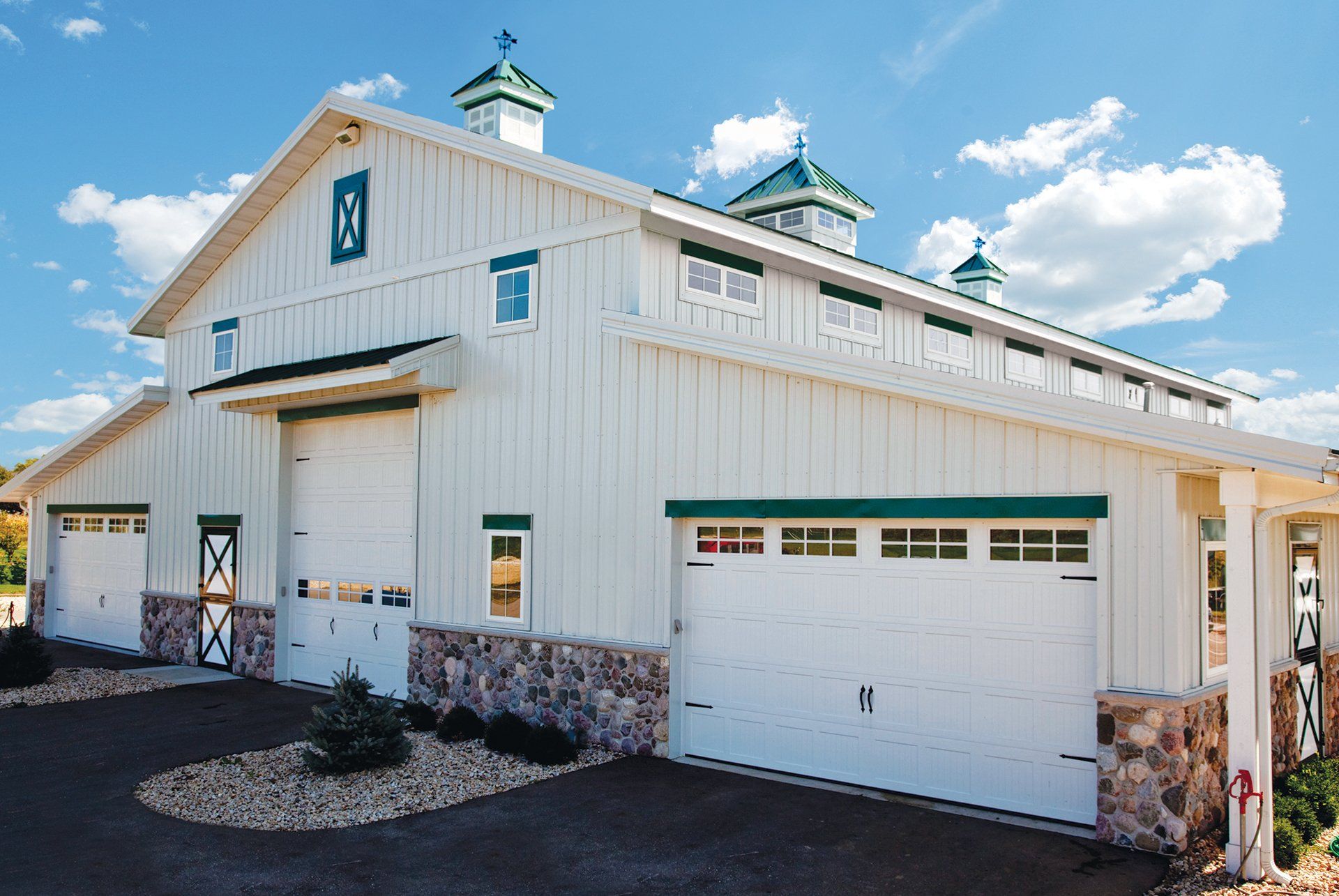

660
672
682 		0.106 18’-2” 16’-0” Extruded
End Cap		 26 GA V-Groove
Woodgrain Steel		 26 GA Ribbed Short Panel
Woodgrain Steel

All Colors except Plank options & Bi-Directional American Walnut & English Oak on 672 & 682

 660
672
682
661
671
681 		0.106 18’-2” 16’-0” Extruded
End Cap		 26 GA V-Groove
Woodgrain Steel		 26 GA Recessed Short Panel
Woodgrain Steel		 All Colors except Plank options & Bi-Directional American Walnut & English Oak on 671 & 681 661
671
681
663
673 		0.106 18’-2” 16’-0” Extruded
End Cap		 26 GA V-Groove
Woodgrain Steel		 26 GA Recessed Long Panel
Woodgrain Steel		 All Colors except Plank options & Bi-Directional American Walnut & English Oak on 673 663
 673
664
674 		0.106 18’-2” 16’-0” Extruded
End Cap		 26 GA V-Groove
Woodgrain Steel		 26 GA Ribbed Long Panel
Woodgrain Steel		 All Colors except Plank options & Bi-Directional American Walnut & English Oak on 674 664
 674
670
667
687 		0.106 18’-2” 16’-0” Extruded
End Cap		 26 GA V-Groove
Woodgrain Steel		 26 GA Raised Ranch Panel
Woodgrain Steel		 All Colors except Plank options & Bi-Directional American Walnut & English Oak

670
667
687

680
668
678 		0.106 18’-2” 16’-0” Extruded
End Cap		 26 GA V-Groove
Woodgrain Steel		 26 GA Raised Standard Panel
Woodgrain Steel		 All Colors except Plank options & Bi-Directional American Walnut & English Oak
680
668
678
690
669
679 		0.106 18’-2” 16’-0” Extruded
End Cap		 26 GA V-Groove
Woodgrain Steel		 26 GA Raised Sculptured Panel
Woodgrain Steel		 All Colors except Plank options & Bi-Directional American Walnut & English Oak
 690
669
679
Note: Certain weights and/or applications may limit the size allowed
TECHNICAL INFORMATION

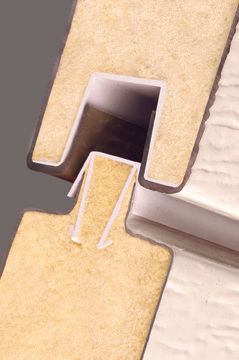

FULL THERMAL BREAK: A full thermal break is used in the tongue-and-groove construction of all commercial insulated doors. This rigid vinyl extrusion seals the joints and minimizes metal-to-metal contact between door sections, which limits the transfer of temperature. This also provides optimum water and wind resistance.

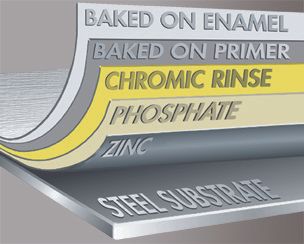

UNIQUE PAINT SYSTEM: All Haas steel garage doors include a three-tier, corrosion-resistant protective paint system with a polyurethane primer and durable polyester finish coat on the interior and exterior. Haas Door's paint thickness is one of the highest in the industry and many of the 600 Series doors are available in 24 colors.

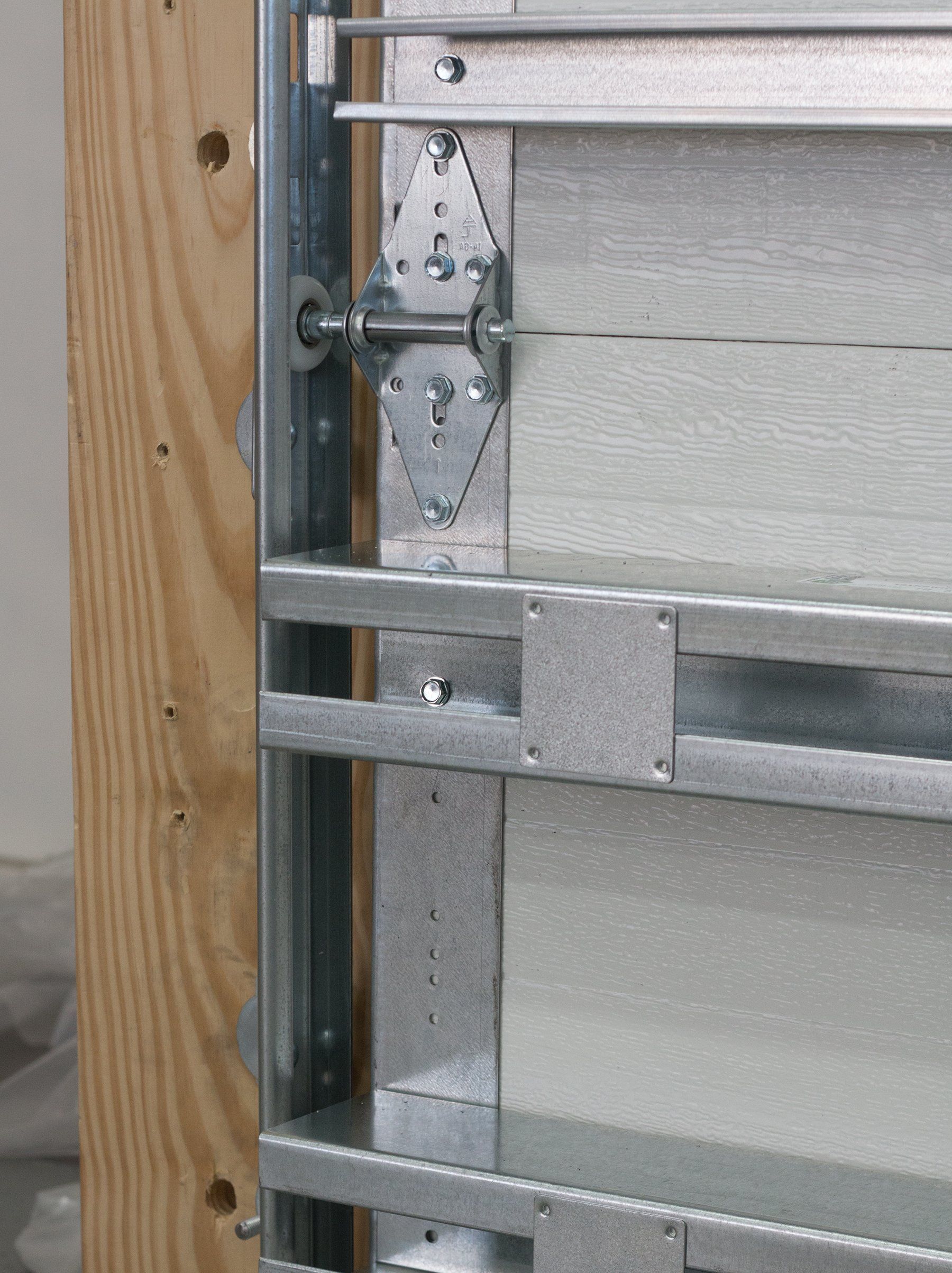

HARD-WORKING HARDWARE: The track is 2" or 3" galvanized steel, depending on door size, with bracket mount for wood jambs or continuous reverse mounting for steel jambs. For angle-mount track, door widths are 2" wider than the opening. Track rollers are 2" or 3" case-hardened inner and outer steel races with 10-ball pre-lubricated bearings. Hinges, brackets and reinforcing struts are hot-dipped galvanized steel. Fasteners are placed for maximum corrosion resistance. Counterbalancing springs are torsion type, computer calibrated to match door load. This provides a 10,000-cycle life at the minimum; optional spring wires can achieve 25,000, 50,000 and 100,000 cycle requirements. Springs are wound from oil-tempered wire and mounted on a continuous cross header tube or solid shaft, as determined by torque load.

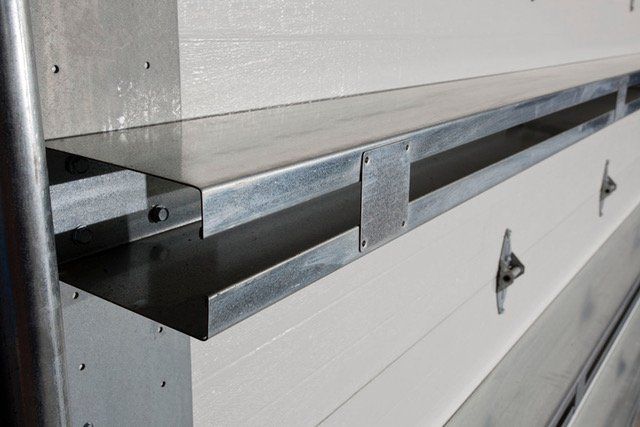

THE E-STRUT AND WIND LOAD: The E-Strut is the next generation of strut dsign. Conceived, developed and manufactured by Haas Door, testing has proven the E-Strut to outperform traditional struts. This patented design is used on all Haas Door products. The innovative E-Strut is intelligently designed to require half as many tek screws as u-bars and struts currently in use. This means less time attaching struts in the field for installers and a savings in labor expense for our dealers. E-Struts are available in 2", 3", 4" and 6" widths and come standard in a galvanized finish. The 4" and 6" sizes do not require hinge straps. Haas Door products are available in a wide range of design pressures for wind load requirements. Contact your local Haas Door dealer for more information about wind load requirements in your area.

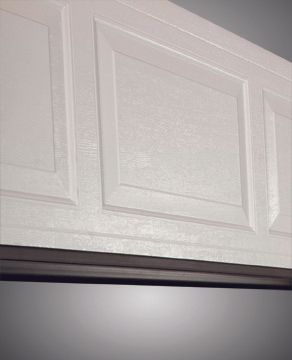

WEATHER SEAL: A full-length, one-piece heavy vinyl bottom weather seal prevents infiltratin of air, rain, snow and debris. The seal reduces impact shocks when the door is closed against concrete flooring.
STANDARD COLORS

Polar White

Almond

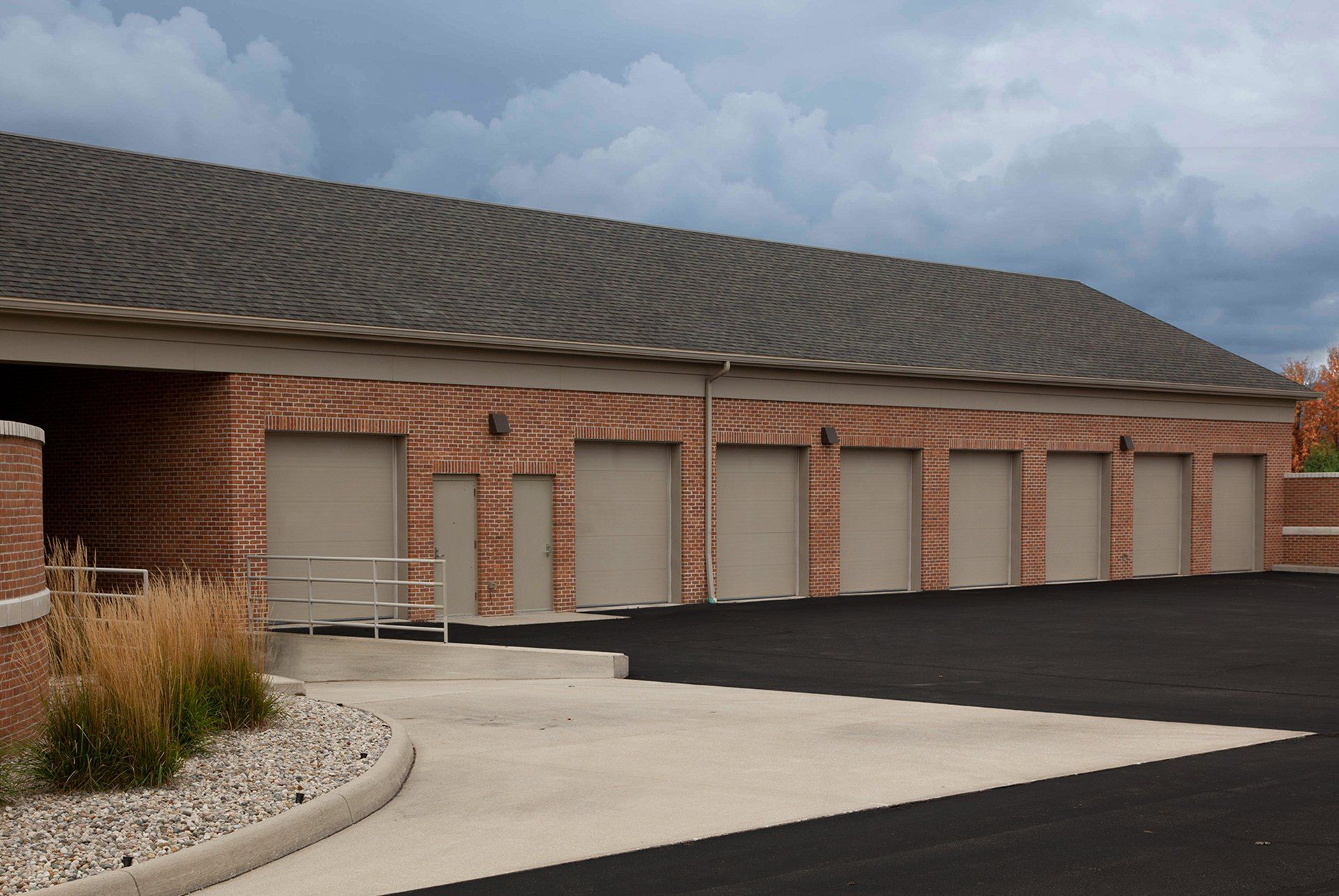

Sandstone

Bronze**

Brown**

Gray

Charcoal**
All colors are not available in every model. Refer to chart for color availability. Colors as shown are not exact due to differences in monitors. For accurate color samples, contact a Haas Door dealer for a color selector.

**These color options include cool chemistry paint finish on the base door, but is not recommended for projects with extreme exposures to heat and sunlight.

Trinar® colors on steel sections carry a 35-year finish warranty, making them ideal for projects that require extra-long lasting durability and beauty.
WOOD GRAIN COLORS
PLANK WOOD GRAINS
With plank designs the length of the door section, each door has a varied section stack, adding another interesting level to the overall appearance. The versatility of the plank complements both modern and traditional styles, making them unique and bold.

Cedar Plank

English Oak Plank

American Walnut Plank
BI-DIRECTIONAL WOOD GRAINS
A vertical wood grain pattern on the panel and stile contrasting with a horizontal pattern on the rails creates the appearance of a real wood door. Bi-directionals feature a light stucco embossment.

Ash

English Oak

American Walnut*

Mahogany
* Bi-Directional American Walnut & English Oak are not available on 70, 71, 72, 73, 74, 80, 81, 82 & 90 models.
UNI-DIRECTIONAL WOOD GRAINS
These authentic colors feature a woodgrain pattern that runs horizontally to complement any of our insulated steel models. Uni-directionals feature a wood grain embossment.

Ash

English Oak

American Walnut

Mahogany

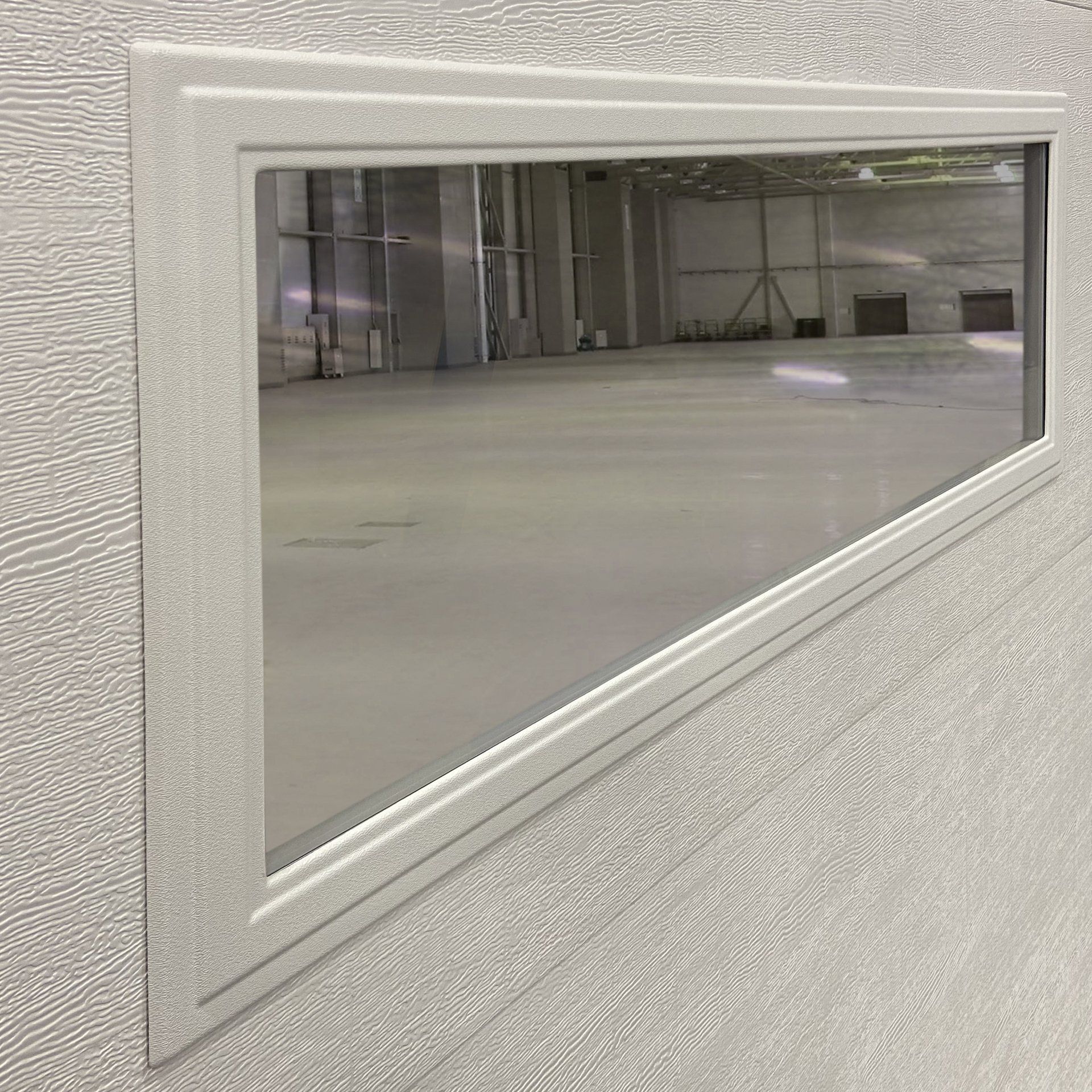

INSULATED GLASS OPTIONS (more info)
Some glass  options may be temporarily unavailable. Please check with your dealer for real time availability.

Clear/Clear

Clear/Frosted
*Translucent Mirror glass option appearance varies greatly depending on light location. When the inside of the garage is dark, it allows the mirror properties of the glass to show, and strong reflection happens, limiting opacity. However, when it is lighter inside the garage than outside, the glass becomes mostly transparent.

NON-INSULATED GLASS OPTIONS
Some glass options may be temporarily unavailable. Please check with your dealer for real time availability.
Care instructions for non-insulated Frosted Glass.

Clear

Frosted
DECORATIVE HARDWARE
