Insulated Steel 700 Series
Built to Last

INSULATED 700 SERIES

These Insulated Steel 700 Series doors stand up to the elements while dramatically decreasing exterior noise and enhancing the overall aesthetics of your building. The 1-3/4" thick doors help you save energy and provide a protected, more comfortable interior environment. Built to last, 700 Series doors have the all the options you need to create the perfect solution.
  •  1-3/4”-Thick Environmentally Compliant Polyurethane
  • 0.093 Tested U-Factor
  • Full Thermal Break
  • 26-Gauge Galvanized Steel
  • Available with Wind Load and Impact Options
  • Available with SelectView Options
  • 24 Color Options
  • 10-Year Rust-Through & Delamination Warranty
  • 10-Year Finish, 12-Year for Plank Options
  • 1-Year Hardware
  • 1-Year Spring
    • 2” or 3” track
    • Double steel end stiles
    • Exhaust port
    • Cam safety device
    • Spring bumpers
    • Chain hoist
    • High cycle springs
    • High cycle rollers
    • Wind load rating
    • Glazing (windows)
    • Aluminum full view section
    • Pass door
    • Top header seal
    • Keyed lock
    • Operator Options Available
    Technical Spec Sheets

    Tested U-Factor validated by DASMA Thermal Performance Verification Program

    700 SERIES MODELS
    Door Specs
    Section Skins & End Stiles
    Color & Window Options
    0.093 Tested U-Factor
    Max Height: 18'-2"
    Max Width: 16'-0"
    Inside: 26 GA V Groove Woodgrain Steel
    Outside: 26 GA Flush Woodgrain Steel
    Extruded End Cap
    All colors except
    bi-directional wood grains
    0.093 Tested U-Factor
    Max Height: 18'-2"
    Max Width: 16'-0"
    Inside: 26 GA V Groove Woodgrain Steel
    Outside: 26 GA V Groove Woodgrain Steel
    Extruded End Cap
    All colors except plank options &
    bi-directional wood grains
    0.093 Tested U-Factor
    Max Height: 38'-2"
    Max Width: 32'-0"
    Inside: 26 GA V Groove Woodgrain Steel
    Outside: 26 GA Flush Woodgrain Steel
    Steel End Stiles
    All colors except
    bi-directional wood grains
    0.093 Tested U-Factor
    Max Height: 38'-2"
    Max Width: 32'-0"
    Inside: 26 GA V Groove Woodgrain Steel
    Outside: 26 GA V Groove Woodgrain Steel
    Steel End Stiles
    All colors except plank options &
    bi-directional wood grains
    0.093 Tested U-Factor
    Max Height: 24'-2"
    Max Width: 32'-0"
    Inside: 26 GA V Groove Woodgrain Steel
    Outside: 20 GA Flush Smooth Steel
    Steel End Stiles
    Polar White & Brown
    0.093 Tested U-Factor
    Max Height: 38'-2"
    Max Width: 32'-0"
    Inside: 26 GA V Groove Woodgrain Steel
    Outside: 20 GA V Groove Smooth Steel
    Steel End Stiles
    Polar White & Brown
    0.093 Tested U-Factor
    Max Height: 24'-2"
    Max Width: 32'-0"
    Inside: 20 GA V Groove Smooth Steel
    Outside: 20 GA Flush Smooth Steel
    Steel End Stiles
    Polar White & Brown
    0.093 Tested U-Factor
    Max Height: 38'-2"
    Max Width: 32'-0"
    Inside: 20 GA V Groove Smooth Steel
    Outside: 20 GA V Groove Smooth Steel
    Steel End Stiles
    Polar White & Brown
    0.093 Tested U-Factor
    Max Height: 24'-2"
    Max Width: 32'-0"
    Inside: 26 GA V Groove Woodgrain Steel
    Outside: 26 GA Ribbed Short Panel Woodgrain Steel
    Extruded End Cap
    All colors except plank options

    0.093 Tested U-Factor
    Max Height: 24'-2"
    Max Width: 32'-0"
    Inside: 26 GA V Groove Woodgrain Steel
    Outside: 26 GA Recessed Short Panel Woodgrain Steel
    Extruded End Cap
    All colors except plank options

    0.093 Tested U-Factor
    Max Height: 18'-2"
    Max Width: 16'-0"
    Inside: 26 GA V Groove Woodgrain Steel
    Outside: 26 GA Recessed Long Panel Woodgrain Steel
    Extruded End Cap
    All colors except plank options

    0.093 Tested U-Factor
    Max Height: 18'-2"
    Max Width: 16'-0"
    Inside: 26 GA V Groove Woodgrain Steel
    Outside: 26 GA Ribbed Long Panel Woodgrain Steel
    Extruded End Cap
    All colors except plank options

    0.093 Tested U-Factor
    Max Height: 24'-2"
    Max Width: 32'-0"
    Inside: 26 GA V Groove Woodgrain Steel
    Outside: 26 GA Raised Ranch Panel Woodgrain Steel
    Extruded End Cap
    All colors except plank options

    0.093 Tested U-Factor
    Max Height: 24'-2"
    Max Width: 32'-0"
    Inside: 26 GA V Groove Woodgrain Steel
    Outside: 26 GA Raised Standard Panel Woodgrain Steel
    Extruded End Cap
    All colors except plank options

    0.093 Tested U-Factor
    Max Height: 24'-2"
    Max Width: 32'-0"
    Inside: 26 GA V Groove Woodgrain Steel
    Outside: 26 GA Raised Sculptured Panel Woodgrain Steel
    Extruded End Cap
    All colors except plank options

    Note: Certain weights and/or applications may limit the size allowed
    700 SERIES MODELS
    Untitled Document
    Model/Spec Sheet Panel Tested U-Factor Max Width Max Height End Stile Interior Skin Exterior Skin Colors Windows
    710

    0.093

    		 18’-2” 16’-0” Extruded
    End Cap    		 26 GA V-Groove
    Woodgrain Steel    		 26 GA Flush
    Woodgrain Steel    		 All Colors except
    Bi-Directional wood grains
    		Window Options
    712 0.093 18’-2” 16’-0” Extruded
    End Cap    		 26 GA V-Groove
    Woodgrain Steel    		 26 GA V-Groove
    Woodgrain Steel    		 All Colors except Plank options &
    Bi-Directional wood grains
    		Window Options
    714 0.093 38’-2” 32’-0” 16 GA
    Steel    		 26 GA V-Groove
    Woodgrain Steel    		 26 GA Flush
    Woodgrain Steel    		 All Colors except
    Bi-Directional wood grains
    		Window Options
    716 0.093 38’-2” 32’-0” 16 GA
    Steel    		 26 GA V-Groove
    Woodgrain Steel    		 26 GA V-Groove
    Woodgrain Steel    		 All Colors except Plank options &
    Bi-Directional wood grains
    		Window Options
    732 0.093 24’-2” 32’-0” 16 GA
    Steel    		 26 GA V-Groove
    Woodgrain Steel    		 20 GA Flush
    Smooth Steel    		 Polar White & Brown
    		 Window Options
    733 0.093 38’-2” 32’-0” 16 GA
    Steel    		 26 GA V-Groove
    Woodgrain Steel    		 20 GA V-Groove
    Smooth Steel    		 Polar White & Brown
    		 Window Options
    732-20 0.093 24’-2” 32’-0” 16 GA
    Steel    		 20 GA V-Groove Smooth Steel 20 GA Flush
    Smooth Steel    		 Polar White & Brown
    		 Window Options
    733-20 0.093 38’-2” 32’-0” 16 GA
    Steel    		 20 GA V-Groove Smooth Steel 20 GA V-Groove
    Smooth Steel    		 Polar White & Brown
    		Window Options
    760
    772
    782     		0.093 24-’2” 32’-0” Extruded
    End Cap    		 26 GA V-Groove
    Woodgrain Steel    		 26 GA Ribbed Short Panel
    Woodgrain Steel

    All Colors except Plank options & Bi-Directional American Walnut & English Oak on 772 & 782

    		 760
    772
    782
    761
    771
    781     		0.093 24-’2” 32’-0” Extruded
    End Cap    		 26 GA V-Groove
    Woodgrain Steel    		 26 GA Recessed Short Panel
    Woodgrain Steel    		 All Colors except Plank options & Bi-Directional American Walnut & English Oak on 771 & 781 761
    771
    781
    763
    773     		0.093 18-’2” 16’-0” Extruded
    End Cap    		 26 GA V-Groove
    Woodgrain Steel    		 26 GA Recessed Long Panel
    Woodgrain Steel    		 All Colors except Plank options & Bi-Directional American Walnut & English Oak on 773 763
     773
    764
    774     		0.093 18-’2” 16’-0” Extruded
    End Cap    		 26 GA V-Groove
    Woodgrain Steel    		 26 GA Ribbed Long Panel
    Woodgrain Steel    		 All Colors except Plank options & Bi-Directional American Walnut & English Oak on 774 764
     774
    770
    767
    787     		0.093 24-’2” 32’-0” Extruded
    End Cap    		 26 GA V-Groove
    Woodgrain Steel    		 26 GA Raised Ranch Panel
    Woodgrain Steel    		 All Colors except Plank options & Bi-Directional American Walnut & English Oak 770
    767
    787
    780
    768
    778     		0.093 24-’2” 32’-0” Extruded
    End Cap    		 26 GA V-Groove
    Woodgrain Steel    		 26 GA Raised Standard Panel
    Woodgrain Steel    		 All Colors except Plank options & Bi-Directional American Walnut & English Oak
    		780
    768
    778
    790
    769
    779     		0.093 24-’2” 32’-0” Extruded
    End Cap    		 26 GA V-Groove
    Woodgrain Steel    		 26 GA Raised Sculptured Panel
    Woodgrain Steel    		 All Colors except Plank options & Bi-Directional American Walnut & English Oak
    		 790
    769
    779
    Note: Certain weights and/or applications may limit the size allowed
    TECHNICAL INFORMATION

    THE STRENGTH TO KEEP OUT NOISE AND WEATHER: Haas commercial insulated doors stand up to the elements while dramatically decreasing exterior noise and enhancing the overall aesthetics of your building at the same time. Choosing one of our insulated doors will help increase energy savings, as our environmentally compliant polyurethane provides one of the best Tested U-Factors available in sectional doors. Haas garage doors are made from steel that contains 80% recycled material. They are reinforced with roll-formed galvanized steel struts and double-end hinges, as required to meet wind load specifications and to comply with ANSI/DASMA 102. The protective coating system is found on both the interior and exterior steel.

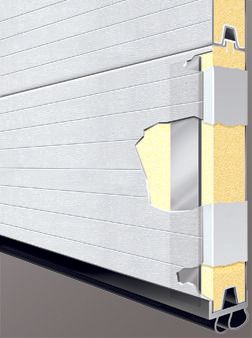

    ENVIRONMENTALLY COMPLIANT POLYURETHANE CONSTRUCTION: The polyurethane foam in a Haas garage door section is fully enclosed inside the steel skins. This design puts the insulation properties of polyurethane foam far ahead of polystyrene foam for performance and value. Polyurethane foam is a two-part system. It begins with two chemical blends that when mixed together expand and cure to fill the garage door panel. During the expansion, the foam completely fills the inside of the panel and becomes fully adhered to the steel skins of the garage door panel to form a composite structure that is of exceptional strength and rigidity. Polyurethane foams are very stable when encapsulated inside a garage door section. Insulating with polyurethane provides a superior product with higher insulation properties and a stronger unitized section.

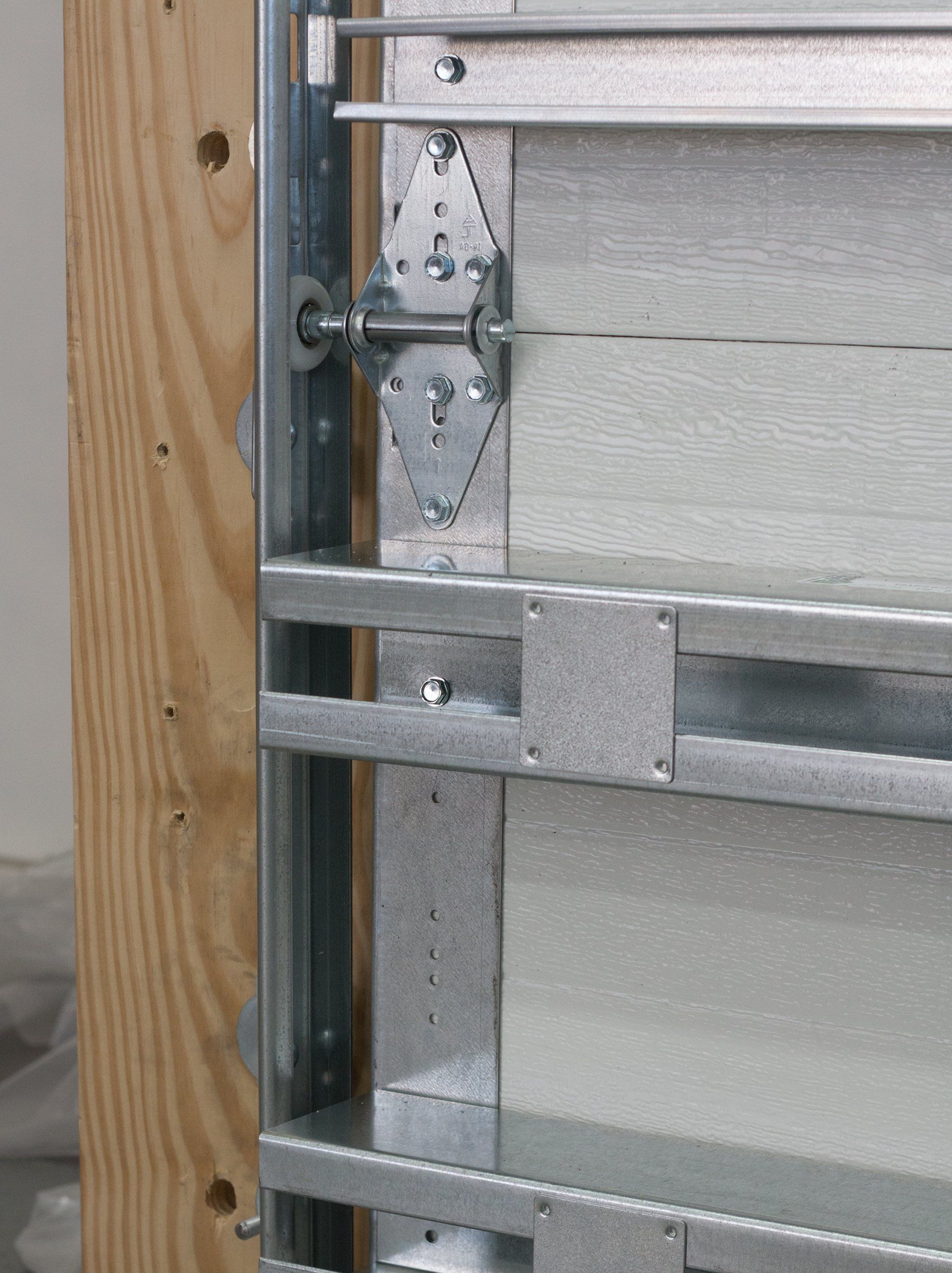

    HARD-WORKING HARDWARE: The track is 2" or 3" galvanized steel, depending on door size, with bracket mount for wood jambs or continuous reverse mounting for steel jambs. For angle-mount track, door widths are 2" wider than the opening. Track rollers are 2" or 3" case-hardened inner and outer steel races with 10-ball pre-lubricated bearings. Hinges, brackets and reinforcing struts are hot-dipped galvanized steel. Fasteners are placed for maximum corrosion resistance. Counterbalancing springs are torsion type, computer calibrated to match door load. This provides a 10,000-cycle life at the minimum; optional spring wires can achieve 25,000, 50,000 and 100,000 cycle requirements. Springs are wound from oil-tempered wire and mounted on a continuous cross header tube or solid shaft, as determined by torque load.

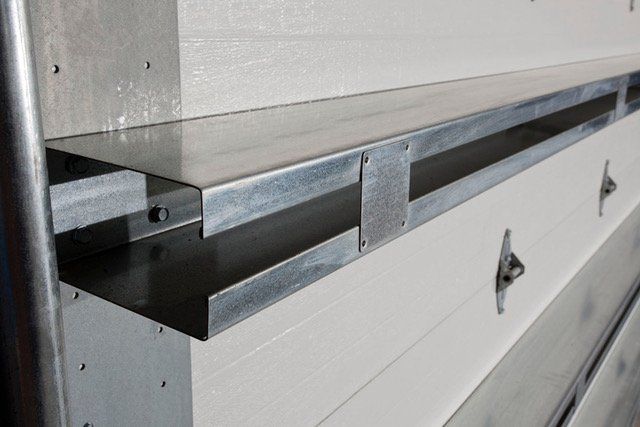

    THE E-STRUT AND WIND LOAD: The E-Strut is the next generation of strut dsign. Conceived, developed and manufactured by Haas Door, testing has proven the E-Strut to outperform traditional struts. This patented design is used on all Haas Door products. The innovative E-Strut is intelligently designed to require half as many tek screws as u-bars and struts currently in use. This means less time attaching struts in the field for installers and a savings in labor expense for our dealers. E-Struts are available in 2", 3", 4" and 6" widths and come standard in a galvanized finish. The 4" and 6" sizes do not require hinge straps. Haas Door products are available in a wide range of design pressures for wind load requirements. Contact your local Haas Door dealer for more information about wind load requirements in your area.

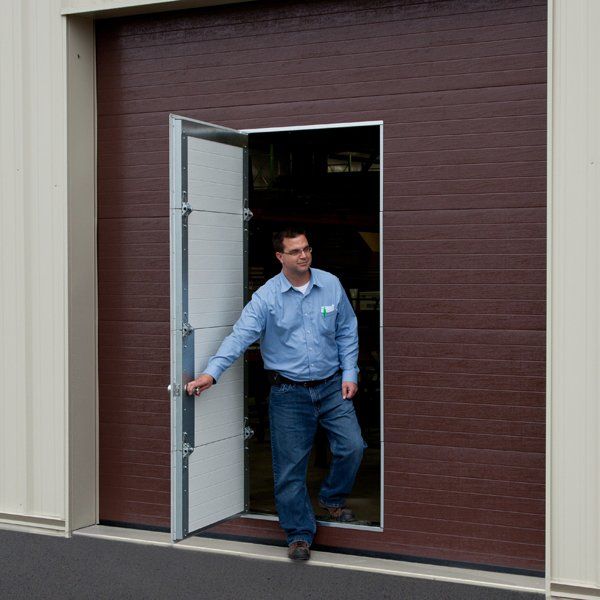

    PASS DOOR: Custom pass doors are available on the 2000 and 700 Series

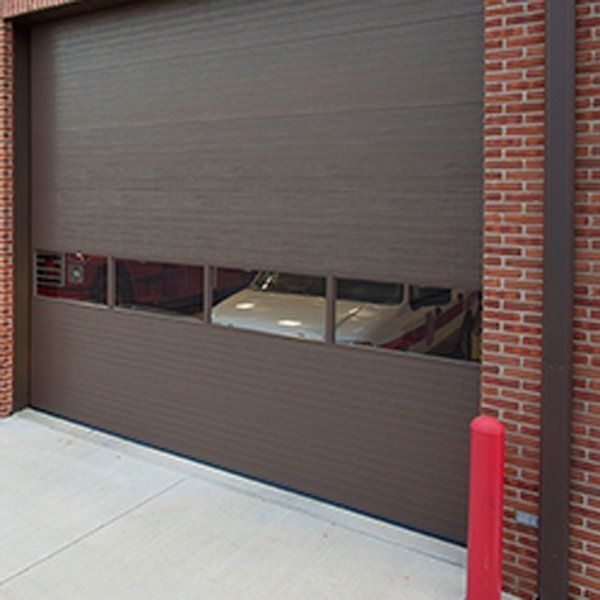

    FULL VIEW: Optional full view sections provide maximum light and visibility with available insulated glazing.

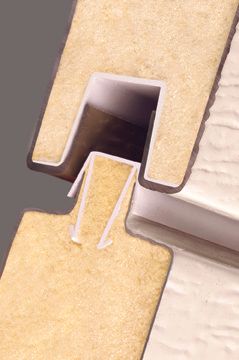

    FULL THERMAL BREAK: A full thermal break is used in the tongue-and-groove construction of all commercial insulated doors. This rigid vinyl extrusion seals the joints and minimizes metal-to-metal contact between door sections, which limits the transfer of temperature. This also provides optimum water and wind resistance.

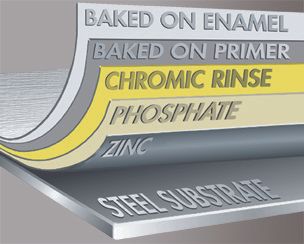

    UNIQUE PAINT SYSTEM: All Haas steel garage doors include a three-tier, corrosion-resistant protective paint system with a polyurethane primer and durable polyester finish coat on the interior and exterior. Haas Door's paint thickness is one of the highest in the industry and many of the 700 Series doors are available in 24 colors.

    WEATHER SEAL: A full-length, one-piece heavy vinyl bottom weather seal prevents infiltratin of air, rain, snow and debris. The seal reduces impact shocks when the door is closed against concrete flooring.
    STANDARD COLORS

    Polar White

    Almond

    Sandstone

    Bronze**

    Brown**

    Gray

    Charcoal**
    All colors are not available in every model. Refer to chart for color availability. Colors as shown are not exact due to differences in monitors. For accurate color samples, contact a Haas Door dealer for a color selector.

    **These color options include cool chemistry paint finish on the base door, but is not recommended for projects with extreme exposures to heat and sunlight.

    Trinar® colors on steel sections carry a 35-year finish warranty, making them ideal for projects that require extra-long lasting durability and beauty.
    WOOD GRAIN COLORS
    PLANK WOOD GRAINS
    With plank designs the length of the door section, each door has a varied section stack, adding another interesting level to the overall appearance. The versatility of the plank complements both modern and traditional styles, making them unique and bold.

    Cedar Plank

    English Oak Plank

    American Walnut Plank
    BI-DIRECTIONAL WOOD GRAINS
    A vertical wood grain pattern on the panel and stile contrasting with a horizontal pattern on the rails creates the appearance of a real wood door. Bi-directionals feature a light stucco embossment.

    Ash

    English Oak

    American Walnut*

    Mahogany
    * Bi-Directional American Walnut & English Oak are not available on 70, 71, 72, 73, 74, 80, 81, 82 & 90 models.
    UNI-DIRECTIONAL WOOD GRAINS
    These authentic colors feature a woodgrain pattern that runs horizontally to complement any of our insulated steel models. Uni-directionals feature a wood grain embossment.

    Ash

    English Oak

    American Walnut

    Mahogany

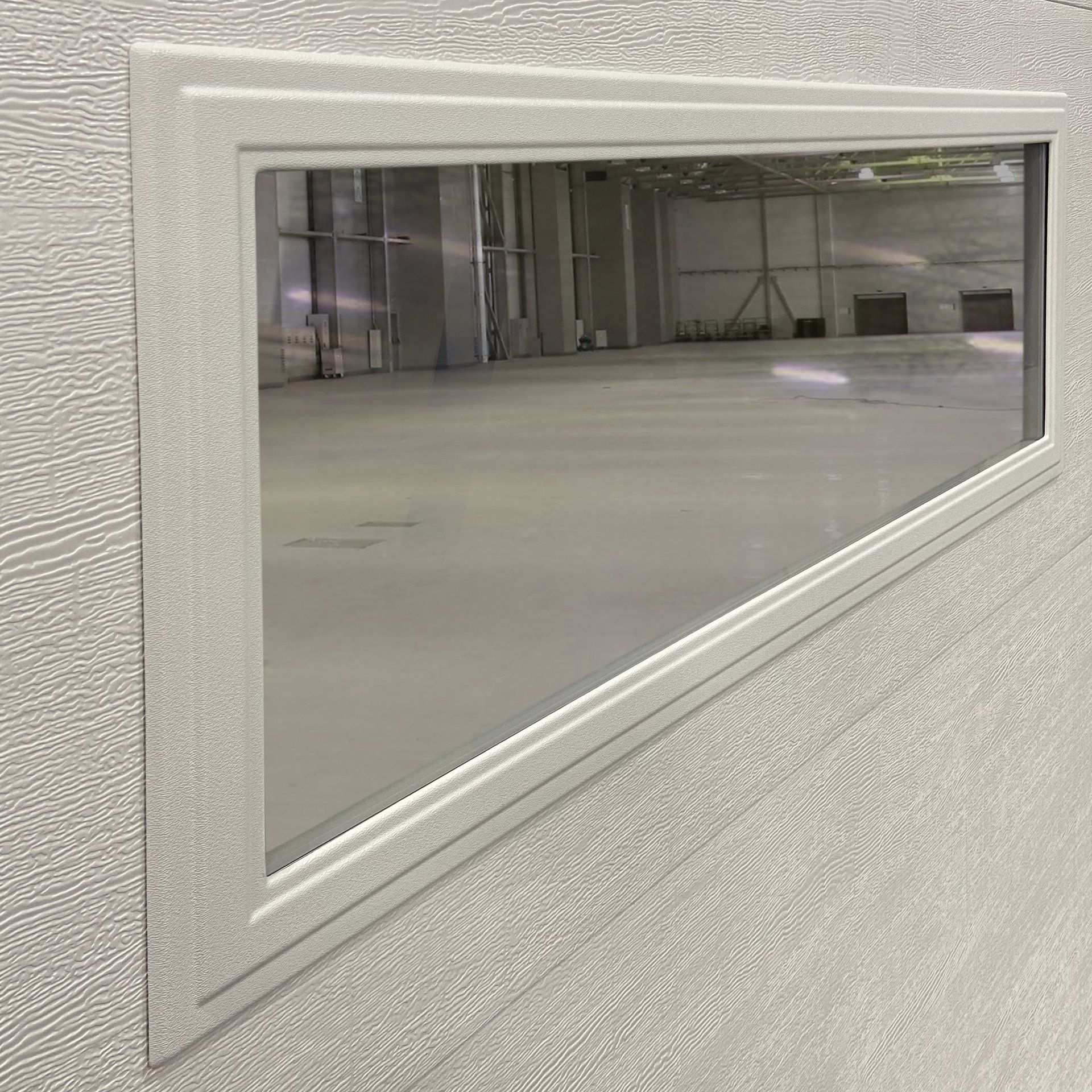

    INSULATED GLASS OPTIONS (more info)
    Some glass options may be temporarily unavailable.
    Please check with your dealer for real time availability.

    Clear/Clear

    Clear/Frosted
    *Translucent Mirror glass option appearance varies greatly depending on light location. When the inside of the garage is dark, it allows the mirror properties of the glass to show, and strong reflection happens, limiting opacity. However, when it is lighter inside the garage than outside, the glass becomes mostly transparent.

    NON-INSULATED GLASS OPTIONS
    Some glass options may be temporarily unavailable.
    Please check with your dealer for real time availability.
    Care instructions for non-insulated Frosted Glass.

    Clear

    Frosted

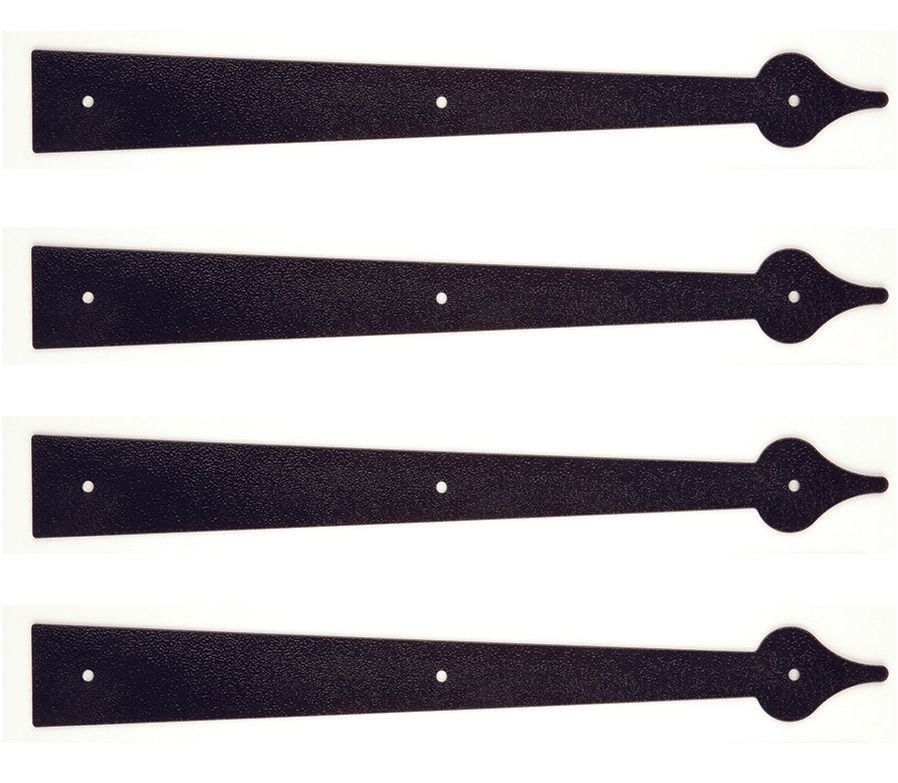

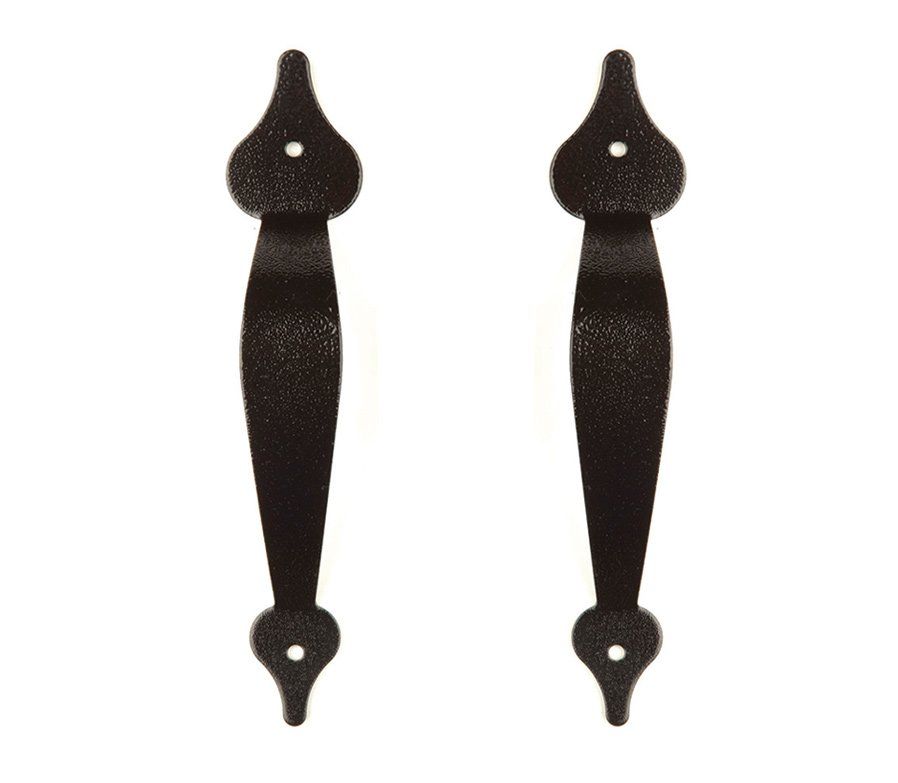

    DECORATIVE HARDWARE
