Insulated Aluminum 5000 Series
Natural Advantages
for Unique Performance.

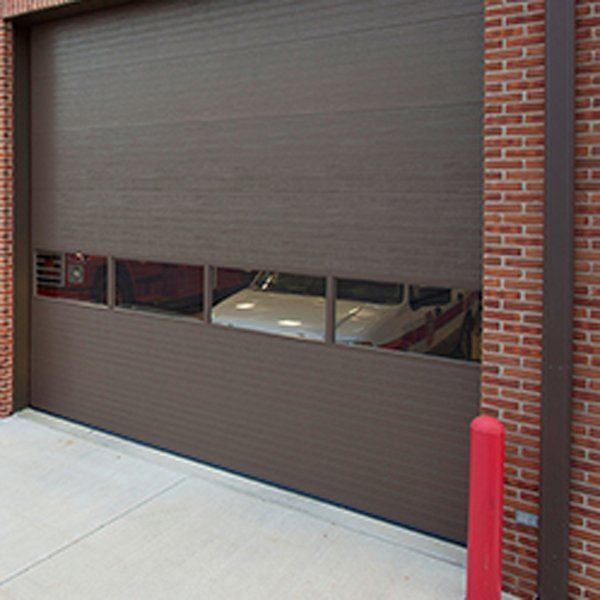

INSULATED ALUMINUM 5000 SERIES

Haas Door Commercial Insulated Aluminum 5000 Series uses the natural advantages of aluminum and takes it to the next level. The Commercial 5000 Series has insulated garage doors with corrosion-resistant aluminum that stands up in harsh weather conditions and is lightweight material. These features provide unique solutions for any project.
  • 3", 2”, or  1 3/4" with
    Full Thermal Break
  • 0.089 Tested U-Factor (5800); 0.110 Tested U-Factor (5200); 0.097 Tested U-Factor (5700)
  • Environmentally Compliant Polyurethane
  • 24-Gauge Corrosive-Resistant Stucco Embossed Aluminum
  • Air Infiltration Joint Seal (5800 & 5200)
  • Available with Wind Load
    & Impact Options
  • Decorative & Specialty Glass available (5200 & 5700)
  • Available with SelectView Options
  • 10-Year Delamination Warranty
  • 10-Year Finish
  • 1-Year Hardware
  • 1-Year Spring
    • 2” or 3” track
    • Double steel end stiles
    • Exhaust port
    • Cam safety device
    • Spring bumpers
    • Chain hoist
    • High cycle springs
    • High cycle rollers
    • Top header seal
    • Glazing (windows)
    • Aluminum full view section (5200 & 5700)
    • Keyed lock (5200 & 5700)
    • Operator Options Available
    • ASTM E 84 Fire Rated
      (Only Miami Dade)
    Technical Spec Sheets

    Tested U-Factor validated by DASMA Thermal Performance Verification Program

    5000 SERIES MODELS
    Door Specs
    Section Skins & End Stiles
    Color & Window Options
    Tested U-Factor Coming Soon
    Max Height:  28'-0"
    Max Width: 21'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA Flush Stucco Aluminum
    16GA Steel End Stile
    Polar White
    Tested U-Factor Coming Soon
    Max Height: 28'-0"
    Max Width: 21'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA V-Groove Stucco Aluminum
    16GA Steel End Stile
    Polar White
    Tested U-Factor Coming Soon
    Max Height: 28'-0"
    Max Width: 21'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA Raised Ranch Stucco Aluminum
    16GA Steel End Stile
    Polar White
    No Window Options
    Tested U-Factor Coming Soon
    Max Height: 28'-0"
    Max Width: 21'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA Raised Std Stucco Aluminum
    16GA Steel End Stile
    Polar White
    No Window Options
    0.110 Tested U-Factor
    Max Height: 16'-0"
    Max Width: 18'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA Flush Stucco Aluminum
    Extruded End Cap
    Polar White
    0.110 Tested U-Factor
    Max Height: 16'-0"
    Max Width: 18'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA V-Groove Stucco Aluminum
    Extruded End Cap
    Polar White
    0.110 Tested U-Factor
    Max Height: 28'-0"
    Max Width: 21'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA Flush Stucco Aluminum
    16GA Steel End Stile
    Polar White
    0.110 Tested U-Factor
    Max Height: 28'-0"
    Max Width: 21'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA V-Groove Stucco Aluminum
    16GA Steel End Stile
    Polar White
    0.110 Tested U-Factor
    Max Height: 28'-0"
    Max Width: 21'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA Raised Ranch Stucco Aluminum
    Extruded End Cap
    0.110 Tested U-Factor
    Max Height: 28'-0"
    Max Width: 21'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA Raised Std Stucco Aluminum
    Extruded End Cap
    0.097 Tested U-Factor
    Max Height: 16'-0"
    Max Width: 18'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA Flush Stucco Aluminum
    Extruded End Cap
    Polar White
    0.097 Tested U-Factor
    Max Height: 16'-0"
    Max Width: 18'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA V-Groove Stucco Aluminum
    Extruded End Cap
    Polar White
    0.097 Tested U-Factor
    Max Height: 28'-0"
    Max Width: 21'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA Flush Stucco Aluminum
    16GA Steel End Stile
    Polar White
    0.097 Tested U-Factor
    Max Height: 28'-0"
    Max Width: 21'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA V-Groove Stucco Aluminum
    16GA Steel End Stile
    Polar White
    0.097 Tested U-Factor
    Max Height: 28'-0"
    Max Width: 21'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA Raised Ranch Stucco Aluminum
    Extruded End Cap
    0.097 Tested U-Factor
    Max Height: 28'-0"
    Max Width: 21'-2"
    Inside: 24GA V-Groove Stucco Aluminum
    Outside: 24 GA Raised Std Stucco Aluminum
    Extruded End Cap
    Note: Certain weights and/or applications may limit the size allowed
    5000 SERIES MODELS
    Untitled Document
    Model/Spec Sheet Panel Tested U-Factor Max Width Max Height End Stile Interior Skin Exterior Skin Colors Windows

    5814

    		0.089 21’-2” 28’-0” 16 GA
    Steel    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA Flush
    Stucco Aluminum

    Polar White

    		Window Options
    5816 0.089 21’-2” 28’-0” Extruded
    End Cap    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA V-Groove
    Stucco Aluminum    		 Polar White
    		Window Options
    5870 0.089 21’-2” 28’-0” 16 GA
    Steel    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA Raised Ranch Panel
    Stucco Aluminum    		 Polar White
    		No Window Options
    5880 0.089 21’-2” 28’-0” 16 GA
    Steel    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA Raised Standard Panel
    Stucco Aluminum    		 Polar White
    		No Window Options
    5210 0.110 18’-2” 16’-0” Extruded
    End Cap    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA Flush
    Stucco Aluminum    		 Polar White
    		 Window Options

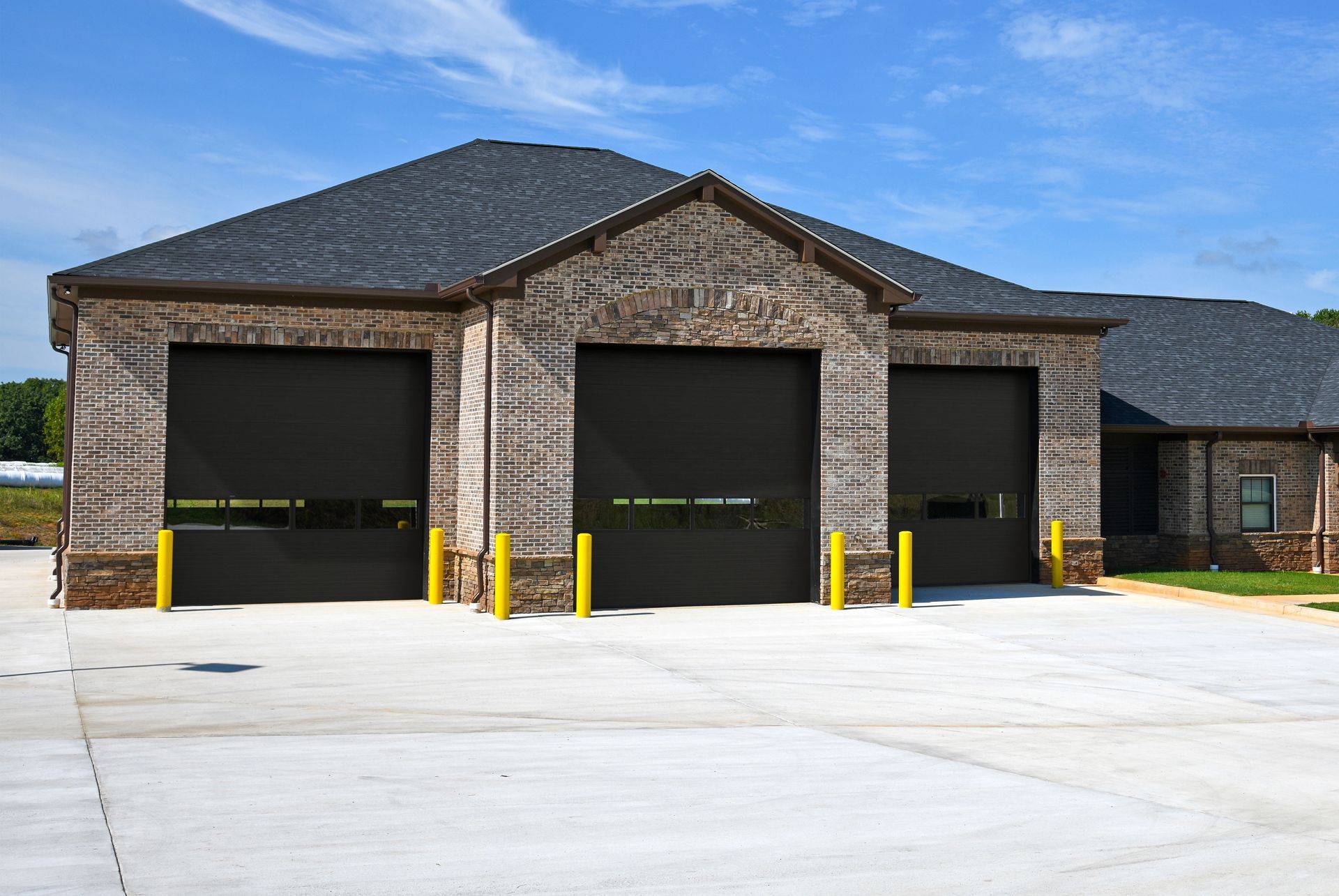

    5212 0.110 18’-2” 16’-0” Extruded
    End Cap    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA V-Groove
    Stucco Aluminum    		 Polar White
    		 Window Options
    5214 0.110 21’-2” 28’-0” 16 GA
    Steel    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA Flush
    Stucco Aluminum    		 Polar White
    		 Window Options

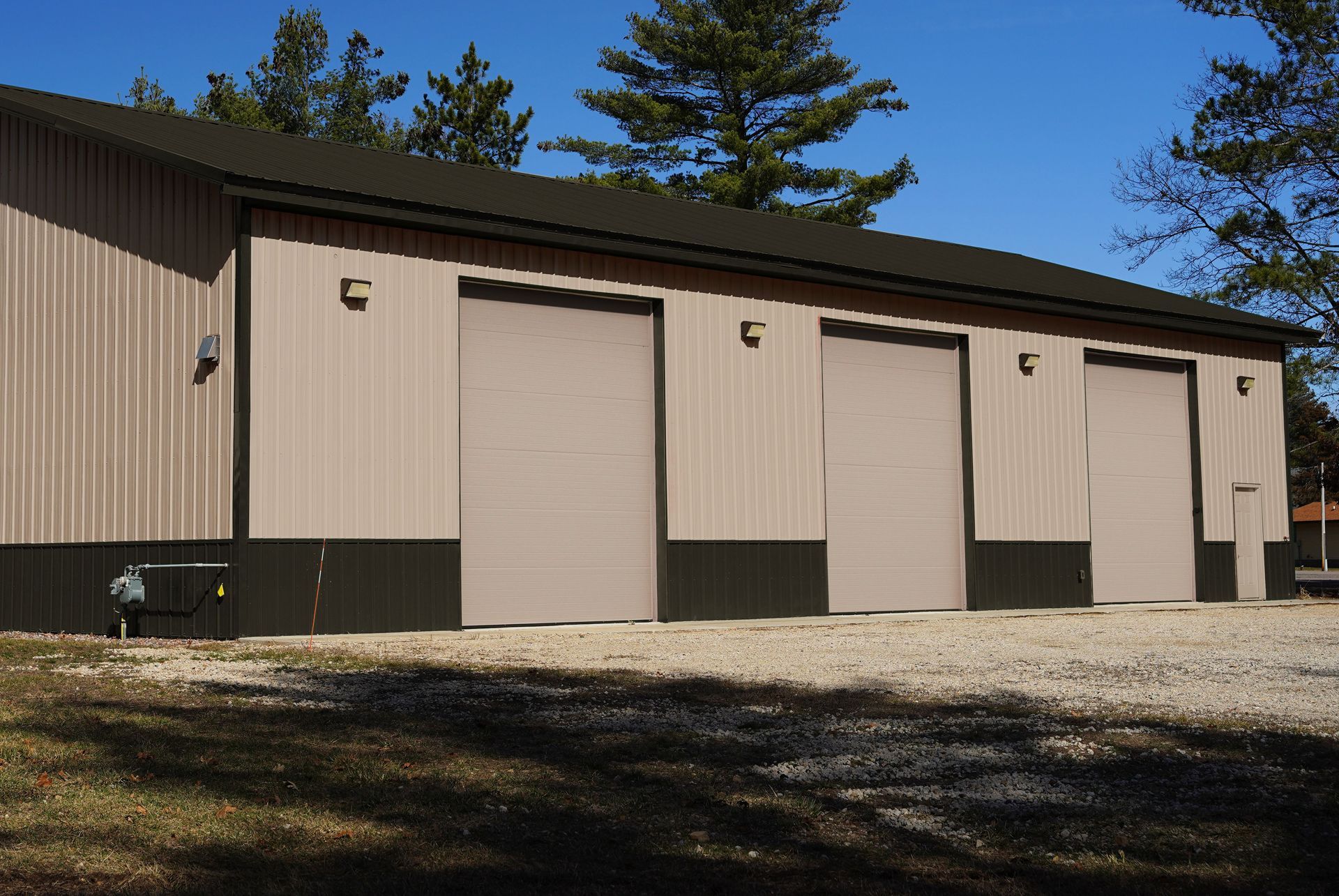

    5216 0.110 21’-2” 28’-0” 16 GA
    Steel    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA V-Groove
    Stucco Aluminum    		 Polar White
    		Window Options
    5270
    5267
    5287     		0.110 21’-2” 28’-0” Extruded
    End Cap    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA Raised Ranch Panel
    Stucco Aluminum    		 Polar White
    		5270
    5267
    5287

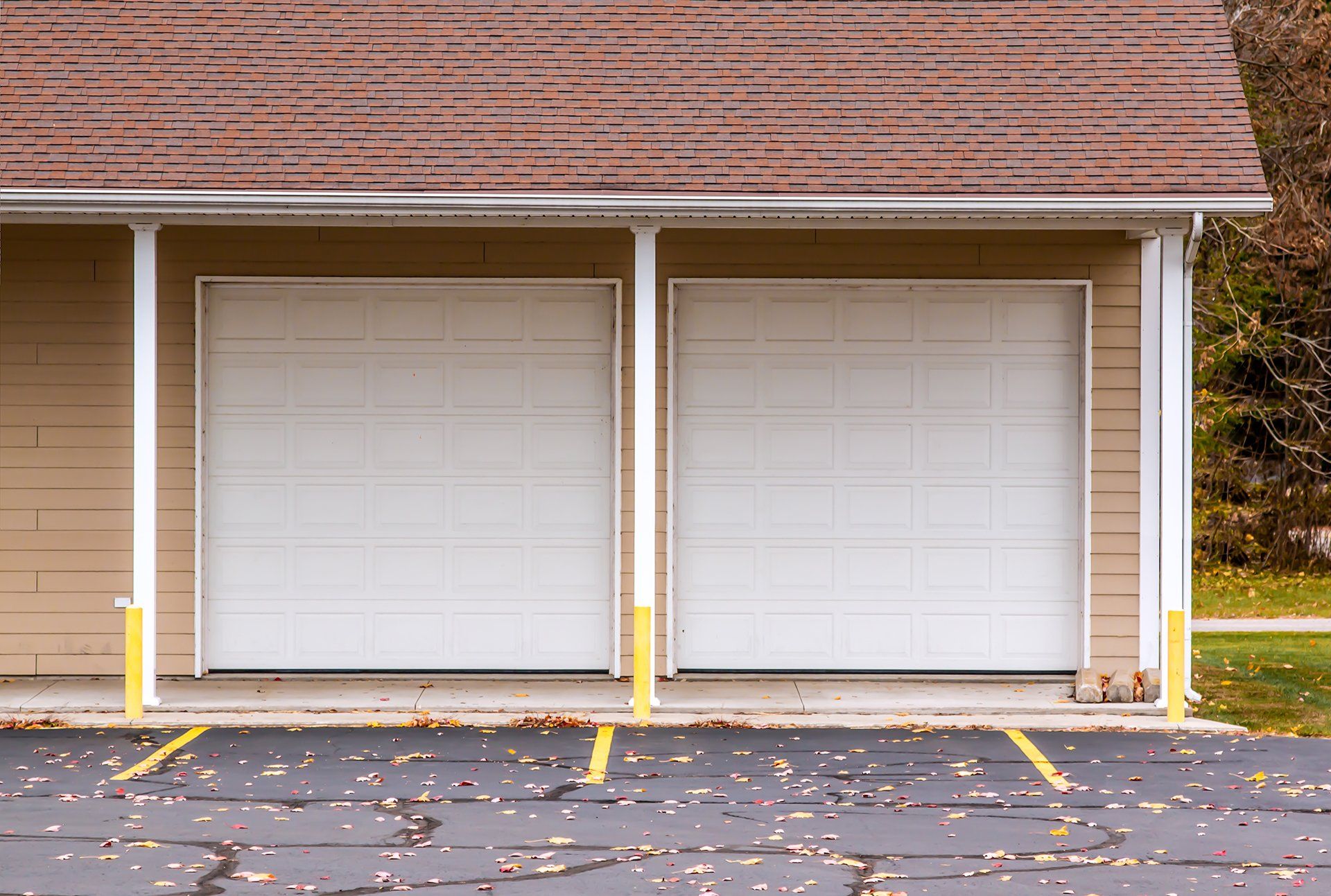

    5280
    5268
    5278     		0.110 21’-2” 28’-0” Extruded
    End Cap    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA Raised Standard Panel
    Stucco Aluminum    		 Polar White
    		5280
    5268
    5278
    5710 0.097 18’-2” 16’-0” Extruded
    End Cap    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA Flush
    Stucco Aluminum

    Polar White

    Window Options

    5712 0.097 18’-2” 16’-0” Extruded
    End Cap    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA V-Groove
    Stucco Aluminum    		 Polar White Window Options
    5714 0.097 21’-2” 28’-0” 16 GA
    Steel    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA Flush
    Stucco Aluminum    		 Polar White Window Options
    5716 0.097 21’-2” 28’-0” 16 GA
    Steel    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA V-Groove
    Stucco Aluminum    		 Polar White Window Options
    5770
    5767
    5787     		0.097 21’-2” 28’-0” Extruded
    End Cap    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA Raised Ranch Panel
    Stucco Aluminum    		 Polar White 5770
    5767
    5787
    5780
    5768
    5778     		0.097 21’-2” 28’-0” Extruded
    End Cap    		 24 GA V-Groove
    Stucco Aluminum    		 24 GA Raised Standard Panel
    Stucco Aluminum    		 Polar White
    		5780
    5768
    5778
    Note: Certain weights and/or applications may limit the size allowed
    TECHNICAL INFORMATION

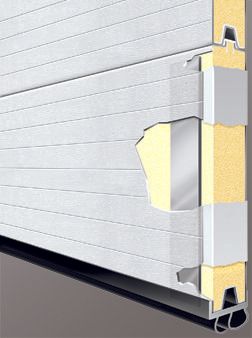

    FULL THERMAL BREAK: A full thermal break is used in the tongue-and-groove construction of all commercial insulated doors. This rigid vinyl extrusion seals the joints and minimizes metal-to-metal contact between door sections, which limits the transfer of temperature. This also provides optimum water and wind resistance.

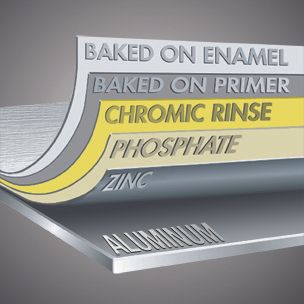

    The 5000 Series doors have an embossed stucco exterior and feature a tough, durable and weather-resistant paint finish.

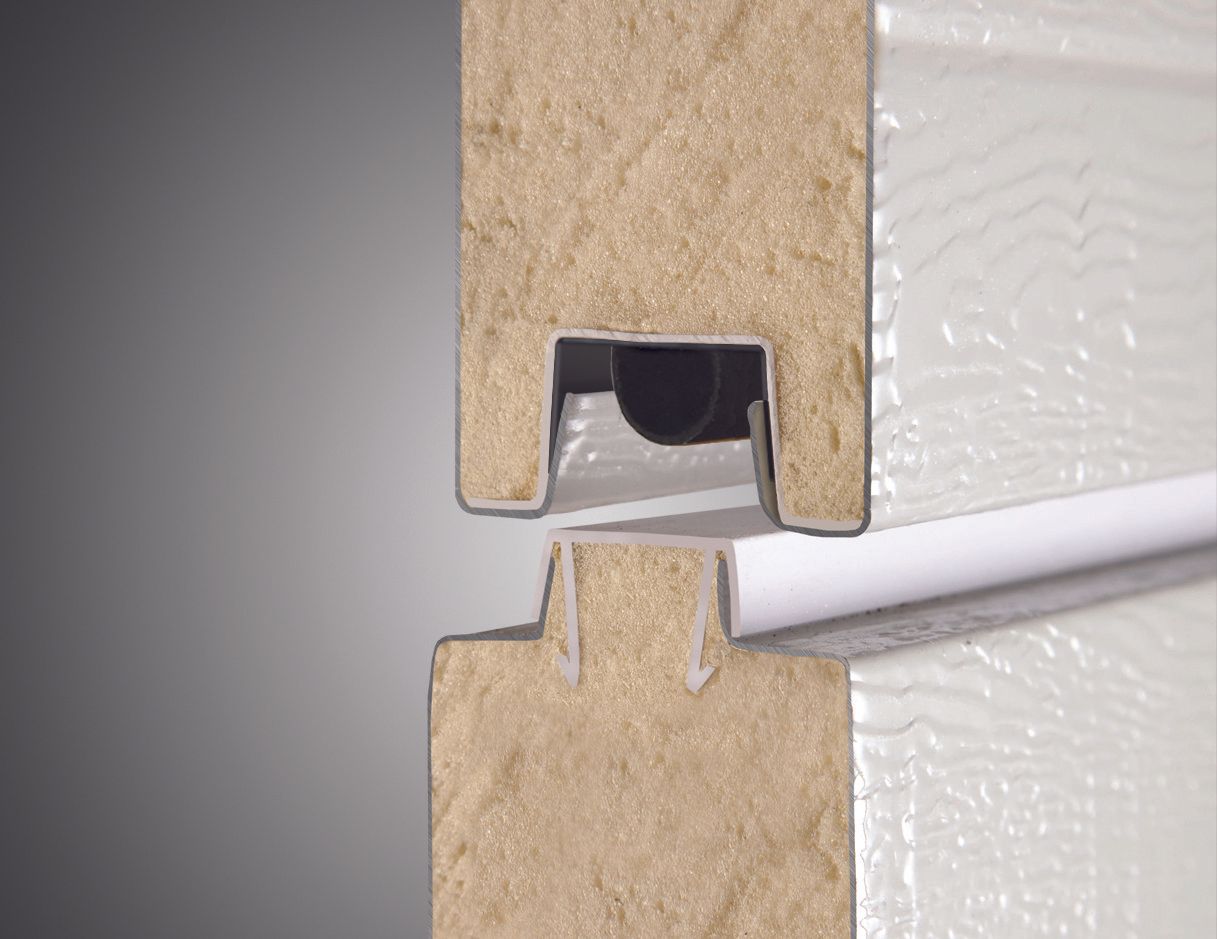

    AIR INFILTRATION SEAL: 5800 & 5200 Model doors include Air Infiltration Seals, which exceed the ASHRAE 90.1 Standard when installed with standard bottom seal and commonly available rigid/flexible vinyl door stop.

    WEATHER SEAL: A full-length, one-piece heavy vinyl bottom weather seal prevents infiltratin of air, rain, snow and debris. The seal reduces impact shocks when the door is closed against concrete flooring.

    HARD-WORKING HARDWARE: The track is 2" or 3" galvanized steel, depending on door size, with bracket mount for wood jambs or continuous reverse mounting for steel jambs. For reverse angle-mount track, door widths are 2" wider than the opening. Track rollers are 2" or 3" case-hardened inner and outer steel races with 10-ball pre-lubricated bearings. Hinges, brackets and reinforcing struts are hot-dipped galvanized steel. Counterbalancing springs are torsion type, computer calibrated to match door load. This provides a 10,000-cycle life at the minimum; optional spring wires can achieve 25,000, 50,000 and 100,000 cycle requirements. Springs are wound from oil-tempered wire and mounted on a continuous cross header tube or solid shaft, as determined by torque load.

    THE E-STRUT AND WIND LOAD: The E-Strut is the next generation of strut design. Conceived, developed and manufactured by Haas Door, testing has proven the E-Strut to outperform traditional struts. This patented design is used on all Haas Door products. The innovative E-Strut is intelligently designed to require half as many tek screws as u-bars and struts currently in use. This means less time attaching struts in the field for installers and a savings in labor expense for our dealers. E-Struts are available in 2", 3", 4" and 6" widths and come standard in a galvanized finish. The 4" and 6" sizes do not require hinge straps. Haas Door products are available in a wide range of design pressures for wind load requirements. Contact your local Haas Door dealer for more information about wind load requirements in your area.

    ENVIRONMENTALLY COMPLIANT POLYURETHANE CONSTRUCTION: The polyurethane foam in a Haas garage door section is fully enclosed inside the aluminum skins. This design puts the insulation properties of polyurethane foam far ahead of polystyrene foam for performance and value. Polyurethane foam is a two-part system. It begins with two chemical blends that when mixed together expand and cure to fill the garage door panel. During the expansion, the foam completely fills the inside of the panel and becomes fully adhered to the steel skins of the garage door panel to form a composite structure that is of exceptional strength and rigidity. Polyurethane foams are very stable when encapsulated inside a garage door section. Insulating with polyurethane provides a superior product with higher insulation properties and a stronger unitized section.

    THE STRENGTH TO KEEP OUT NOISE AND WEATHER: Haas commercial insulated doors stand up to the elements while dramatically decreasing exterior noise and enhancing the overall aesthetics of your building at the same time. Choosing one of our insulated doors will help increase energy savings, as our environmentally compliant polyurethane provides one of the best U-Factors available in sectional doors. They are reinforced with roll-formed galvanized steel struts and double-end hinges, as required to meet wind load specifications and to comply with ANSI/DASMA 102. The protective coating system is found on both the interior and exterior aluminum.

    FULL VIEW: Optional full view sections for 5200 & 5700 Series provide maximum light and visibility with available insulated glazing.
    COLOR OPTION

    Polar White
    Color shown is not exact due to differences in monitors. For accurate color samples, contact a Haas Door dealer for a color selector.
    GLASS OPTIONS - 5200 & 5700 (more info)
    Some glass options may be temporarily unavailable.
    Please check with your dealer for real time availability.
    Care instructions for non-insulated Frosted Glass.

    Clear/Clear

    Clear/Frosted
    *Translucent Mirror glass option appearance varies greatly depending on light location. When the inside of the garage is dark, it allows the mirror properties of the glass to show, and strong reflection happens, limiting opacity. However, when it is lighter inside the garage than outside, the glass becomes mostly transparent.

    DECORATIVE HARDWARE
    DOWNLOADS
    COMMERCIAL BROCHURE TECHNICAL SPECIFICATION SHEETS FLORIDA WIND LOAD BROCHURE
    TEXAS WIND LOAD BROCHURE
    Color Matching
    Need to match your trim to your garage door? Haas Door colors are available at Sherwin Williams.
    PRINTABLE COLOR CODES SHERWIN WILLIAMS STORE LOCATOR
    IMPACT POLYCARBONATE CLEANING INSTRUCTIONS
