The architects' choice for the most demanding specifications.

INSULATED STEEL 800 SERIES

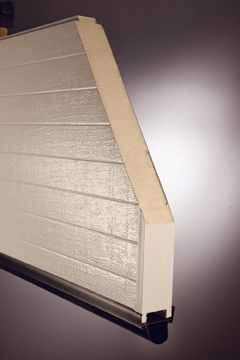

The outstanding features and benefits of the Haas Door Insulated Steel 800 Series have made it the door of choice among commercial and industrial architects. The 800 Series feature a full 3" pressure-injected core of high-density environmentally compliant polyurethane foam insulation with a 0.089 tested U-Factor – the best in the commercial door industry.

3”-Thick Environmentally Compliant Polyurethane

0.089 Tested U-Factor

26-Gauge Galvanized Steel

Full Thermal Break

Air Infiltration Seal

Available with Wind Load

19 Color Options

Available with SelectView Options

10-Year Rust-Through & Delamination Warranty

10-Year Finish

1-Year Hardware

1-Year Spring

2” or 3” track
Double steel end stiles
Exhaust port
Cam safety device
Spring bumpers
Chain hoist
High cycle springs
High cycle rollers
Glazing (windows)
Operator Options Available

Technical Spec Sheets

CREATE YOUR DOOR LEARN MORE

Tested U-Factor validated by DASMA Thermal Performance Verification Program

800 SERIES MODELS

Door Specs

Section Skins & End Stiles

Color & Window Options

814

0.083 Tested U-Factor

Max. Height: 38'-2"

Max. Width: 32'-0"

Outside: 26 GA Flush Woodgrain Steel

Inside: 26 GA V Groove Woodgrain Steel

Steel End Stiles

All colors except Bi-Directional Wood Grains

Window Options

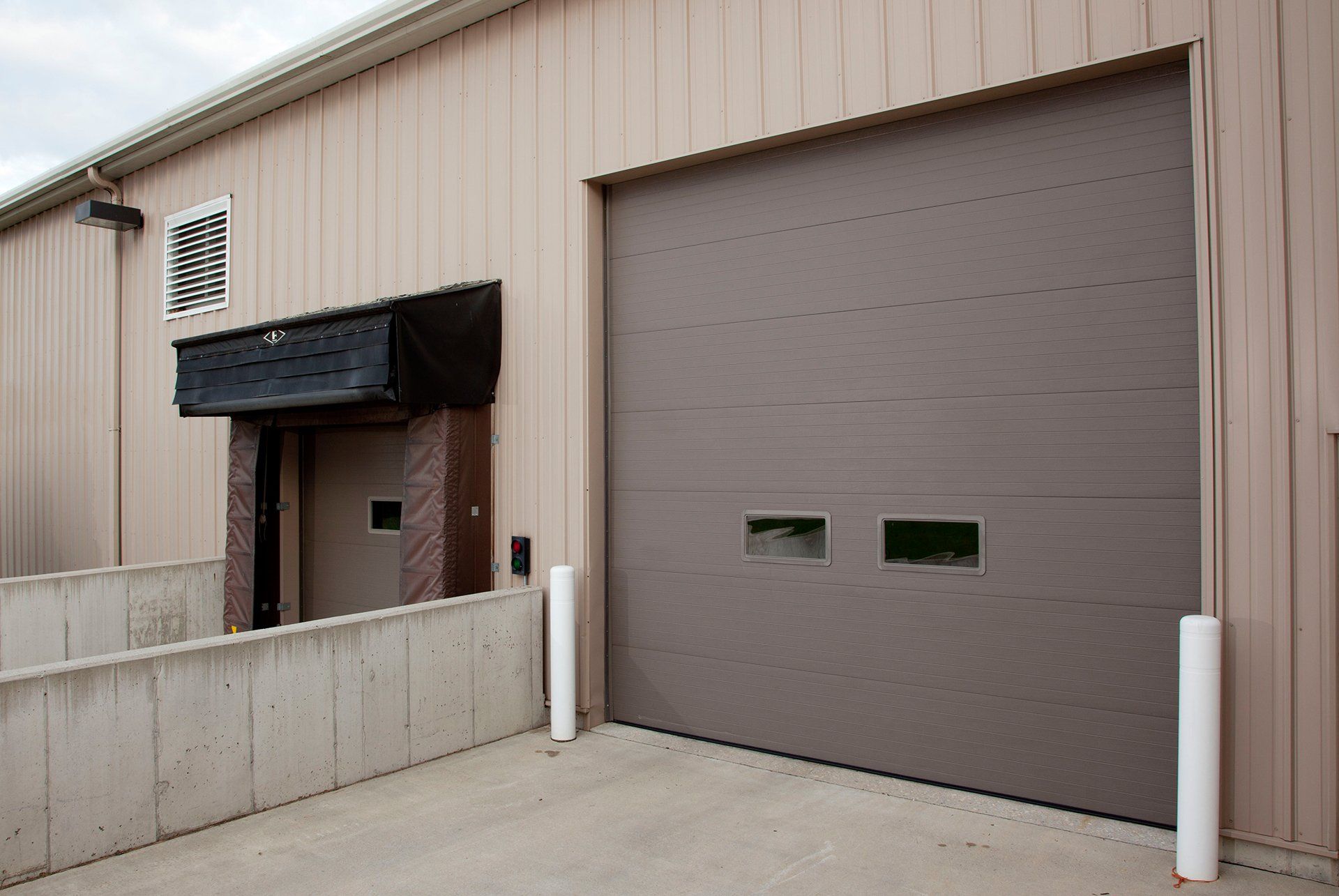

816

0.083 Tested U-Factor

Max. Height: 38'-2"

Max. Width: 32'-0"

Outside: 26 GA Flush Woodgrain Steel

Inside: 26 GA V Groove Woodgrain Steel

Steel End Stiles

All colors except Bi-Directional Wood Grains

Window Options

832

0.083 Tested U-Factor

Max. Height: 24-2"

Max. Width: 32'-0"

Outside: 26 GA Flush Woodgrain Steel

Inside: 26 GA V Groove Woodgrain Steel

Steel End Stiles

Polar White & Brown

Window Options

833

0.083 Tested U-Factor

Max. Height: 38'-2"

Max. Width: 32'-0"

Outside: 26 GA Flush Woodgrain Steel

Inside: 26 GA V Groove Woodgrain Steel

Steel End Stiles

Polar White & Brown

Window Options

832-20

0.083 Tested U-Factor

Max. Height: 24'-2"

Max. Width: 32'-0"

Outside: 20 GA Smooth Steel

Inside: 20 GA V-Groove Smooth Steel

Steel End Stiles

Polar White & Brown

Window Options

833-20

0.083 Tested U-Factor

Max. Height: 38'-2"

Max. Width: 32'-0"

Outside: 20 GA V-Groove Smooth Steel

Inside: 20 GA V-Groove Smooth Steel

Steel End Stiles

Polar White & Brown

Window Options

870

0.083 Tested U-Factor

Max. Height: 38'-2"

Max. Width: 32'-0"

Outside: 26 GA Raised Ranch Panel Woodgrain Steel

Inside: 26 GA V Groove Woodgrain Steel

Steel End Stiles

All colors except Bi-Directional American Walnut

Window Options

880

0.083 Tested U-Factor

Max. Height: 38'-2"

Max. Width: 32'-0"

Outside: 26 GA Raised Standard Panel Woodgrain Steel

Inside: 26 GA V Groove Woodgrain Steel

Steel End Stiles

All colors except Bi-Directional American Walnut

Window Options

890

0.083 Tested U-Factor

Max. Height: 38'-2"

Max. Width: 32'-0"

Outside: 26 GA Raised Sculptured Panel Woodgrain Steel

Inside: 26 GA V Groove Woodgrain Steel

Steel End Stiles

All colors except Bi-Directional American Walnut

Window Options

Note: Certain weights and/or applications may limit the size allowed

800 SERIES MODELS

Model/Spec Sheet	Panel	Tested U-Factor	Max Width	Max Height	End Stile	Interior Skin	Exterior Skin	Colors	Windows
814		0.089	38'-2"	32'-0"	16 GA Steel	26 GA V-Groove Woodgrain Steel	26 GA Flush Woodgrain Steel	All Colors Except Bi-Directional Wood Grains	Window Options
816		0.089	38'-2"	32'-0"	16 GA Steel	26 GA V-Groove Woodgrain Steel	26 GA V-Groove Woodgrain Steel	All Colors Except Bi-Directional Wood Grains	Window Options
832		0.089	24'-2"	32'-0"	16 GA Steel	26 GA V-Groove Woodgrain Steel	20 GA Smooth Steel	Polar White & Brown	Window Options
833		0.089	38'-2"	32'-0"	16 GA Steel	26 GA V-Groove Woodgrain Steel	20 GA V-Groove Smooth Steel	Polar White & Brown	Window Options
832-20		0.089	24'-2"	32'-0"	16 GA Steel	20 GA V-Groove Smooth Steel	20 GA Smooth Steel	Polar White & Brown	Window Options
833-20		0.089	38'-2"	32'-0"	16 GA Steel	20 GA V-Groove Smooth Steel	20 GA V-Groove Smooth Steel	Polar White & Brown	Window Options
870		0.089	24'-2"	32'-0"	16 GA Steel	26 GA V-Groove Woodgrain Steel	26 GA Ranch Panel Woodgrain Steel	All Colors Except Bi-Directional American Walnut & English Oak	No Window Options
880		0.089	24'-2"	32'-0"	16 GA Steel	26 GA V-Groove Woodgrain Steel	26 GA Raised Panel Woodgrain Steel	All Colors Except Bi-Directional American Walnut & English Oak	No Window Options
890		0.089	24'-2"	32'-0"	16 GA Steel	26 GA V-Groove Woodgrain Steel	26 GA Sculptured Panel Woodgrain Steel	All Colors Except Bi-Directional American Walnut & English Oak	No Window Options
Note: Certain weights and/or applications may limit the size allowed

TECHNICAL INFORMATION

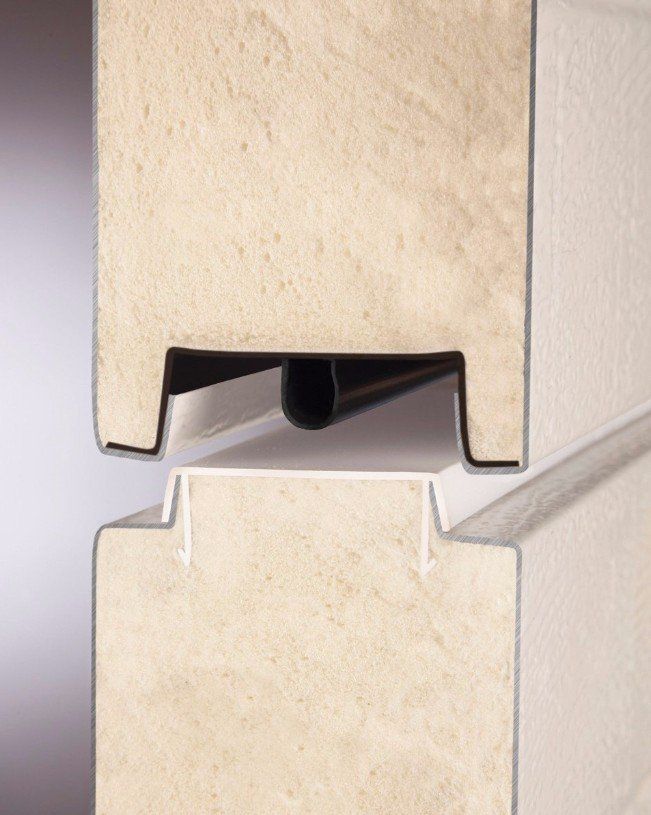

AIR INFILTRATION SEAL: 800 series doors include Air Infiltration Seals, which exceed the ASHRAE 90.1 Standard when installed with standard bottom seal and commonly available rigid/flexible vinyl door stop. A full thermal break is used in the tongue-and-groove construction of all commercial insulated doors. This rigid vinyl extrusion seals the joints and minimizes metal-to-metal contact between door sections, which limits the transfer of temperature. This also provides optimum water and wind resistance.

THE STRENGTH TO KEEP OUT NOISE AND WEATHER: Haas commercial insulated doors stand up to the elements while dramatically decreasing exterior noise and enhancing the overall aesthetics of your building at the same time. Choosing one of our insulated doors will help increase energy savings, as our environmentally compliant polyurethane provides one of the best tested U-Factor available in sectional doors. Haas garage doors are made from steel that contains 80% recycled material. They are reinforced with roll-formed galvanized steel struts and double-end hinges, as required to meet wind load specifications and to comply with ANSI/DASMA 102. The protective coating system is found on both the interior and exterior steel.

ENVIRONMENTALLY COMPLIANT POLYURETHANE CONSTRUCTION: The polyurethane foam in a Haas garage door section is fully enclosed inside the steel skins. This design puts the insulation properties of polyurethane foam far ahead of polystyrene foam for performance and value. Polyurethane foam is a two-part system. It begins with two chemical blends that when mixed together expand and cure to fill the garage door panel. During the expansion, the foam completely fills the inside of the panel and becomes fully adhered to the steel skins of the garage door panel to form a composite structure that is of exceptional strength and rigidity. Polyurethane foams are very stable when encapsulated inside a garage door section. Insulating with polyurethane provides a superior product with higher insulation properties and a stronger unitized section.

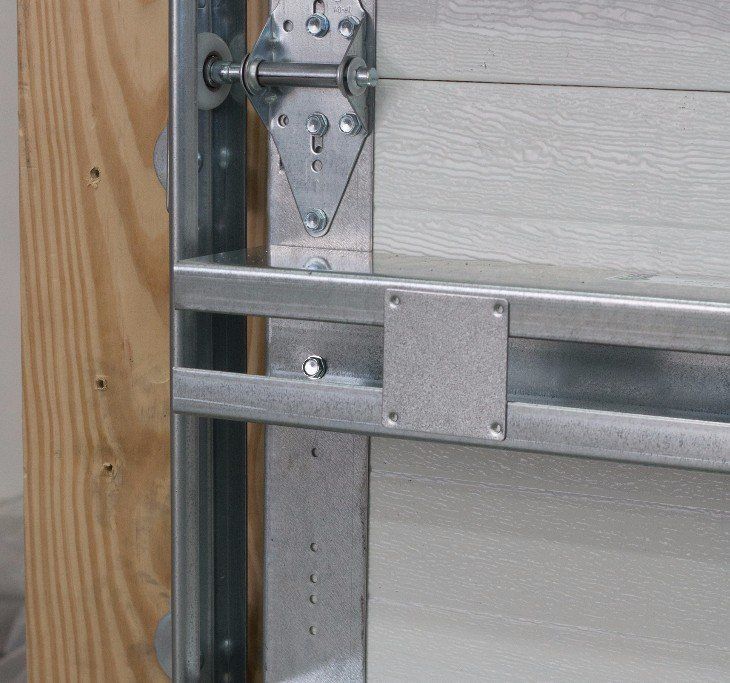

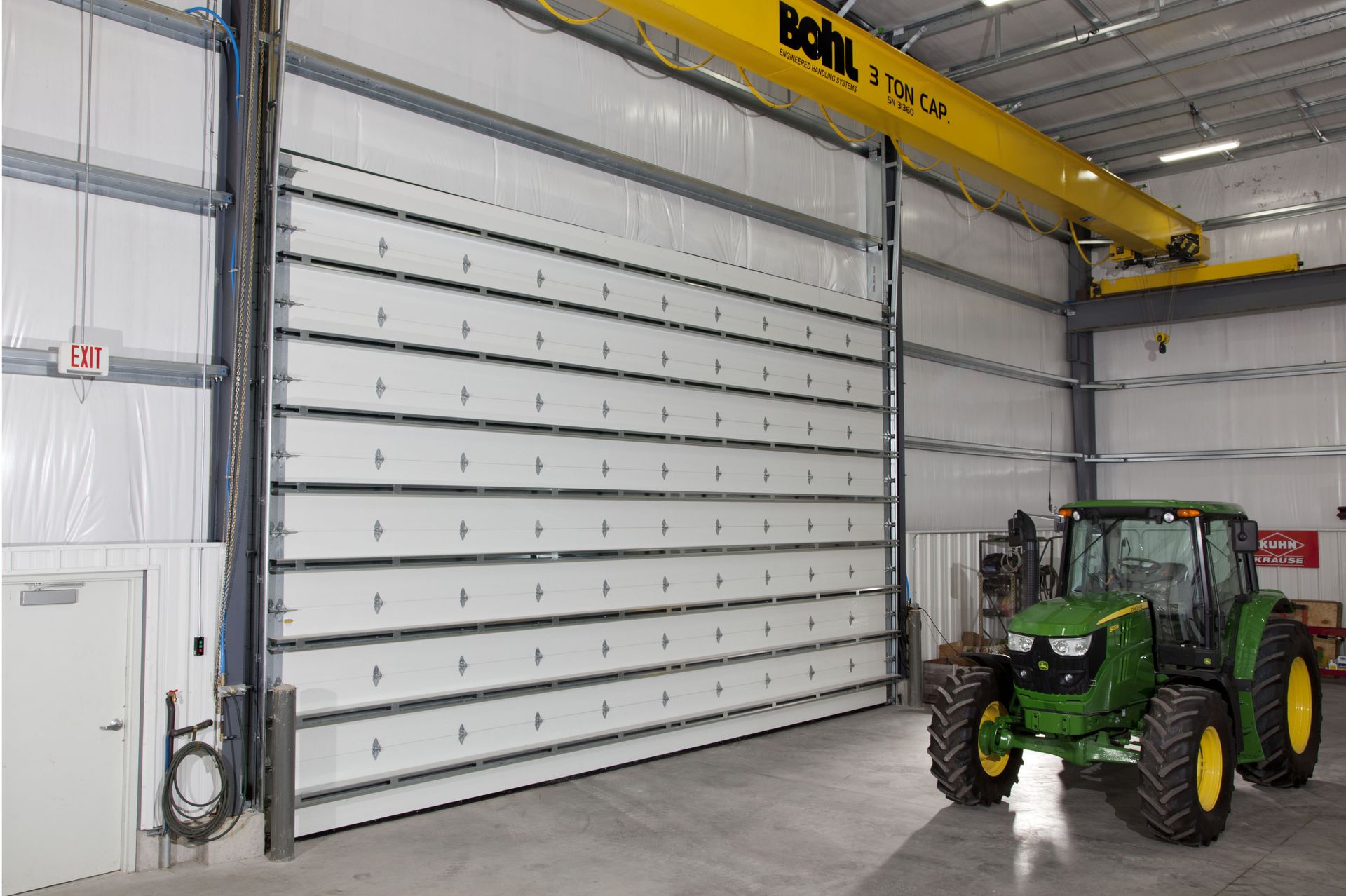

HARD-WORKING HARDWARE: The track is 2" or 3" galvanized steel, depending on door size, with bracket mount for wood jambs or continuous reverse mounting for steel jambs. For reverse angle-mount track, door widths are 2" wider than the opening. Track rollers are 2" or 3" case-hardened inner and outer steel races with 10-ball pre-lubricated bearings. Hinges, brackets and reinforcing struts are hot-dipped galvanized steel. Counterbalancing springs are torsion type, computer calibrated to match door load. This provides a 10,000-cycle life at the minimum; optional spring wires can achieve 25,000, 50,000 and 100,000 cycle requirements. Springs are wound from oil-tempered wire and mounted on a continuous cross header tube or solid shaft, as determined by torque load.

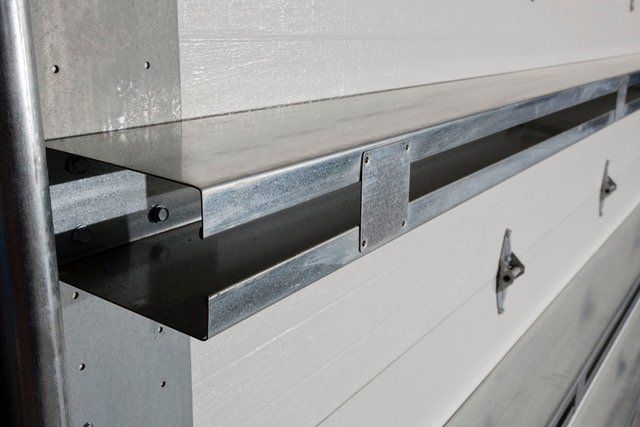

THE E-STRUT AND WIND LOAD: The E-Strut is the next generation of strut design. Conceived, developed and manufactured by Haas Door, testing has proven the E-Strut to outperform traditional struts. This patented design is used on all Haas Door products. The innovative E-Strut is intelligently designed to require half as many tek screws as u-bars and struts currently in use. This means less time attaching struts in the field for installers and a savings in labor expense for our dealers. E-Struts are available in 2", 3", 4" and 6" widths and come standard in a galvanized finish. The 4" and 6" sizes do not require hinge straps. Haas Door products are available in a wide range of design pressures for wind load requirements. Contact your local Haas Door dealer for more information about wind load requirements in your area.

WEATHER SEAL: A full-length, one-piece heavy vinyl bottom weather seal prevents infiltratin of air, rain, snow and debris. The seal reduces impact shocks when the door is closed against concrete flooring.

STANDARD COLORS

Polar White

Almond

Sandstone

Bronze**

Brown**

Gray

Charcoal**

All colors are not available in every model. Refer to chart for color availability. Colors as shown are not exact due to differences in monitors. For accurate color samples, contact a Haas Door dealer for a color selector.

**These color options include cool chemistry paint finish on the base door, but is not recommended for projects with extreme exposures to heat and sunlight.

Trinar® colors on steel sections carry a 35-year finish warranty, making them ideal for projects that require extra-long lasting durability and beauty.

WOOD GRAIN COLORS

BI-DIRECTIONAL WOOD GRAINS

A vertical wood grain pattern on the panel and stile contrasting with a horizontal pattern on the rails creates the appearance of a real wood door. Bi-directionals feature a light stucco embossment.

Ash

English Oak

Mahogany

* Bi-Directional American Walnut & English Oak are not available on 70, 80 & 90 models

UNI-DIRECTIONAL WOOD GRAINS

These authentic colors feature a woodgrain pattern that runs horizontally to complement any of our insulated steel models. Uni-directionals feature a wood grain embossment.
