Insulated Steel 2000 Series

Slide title

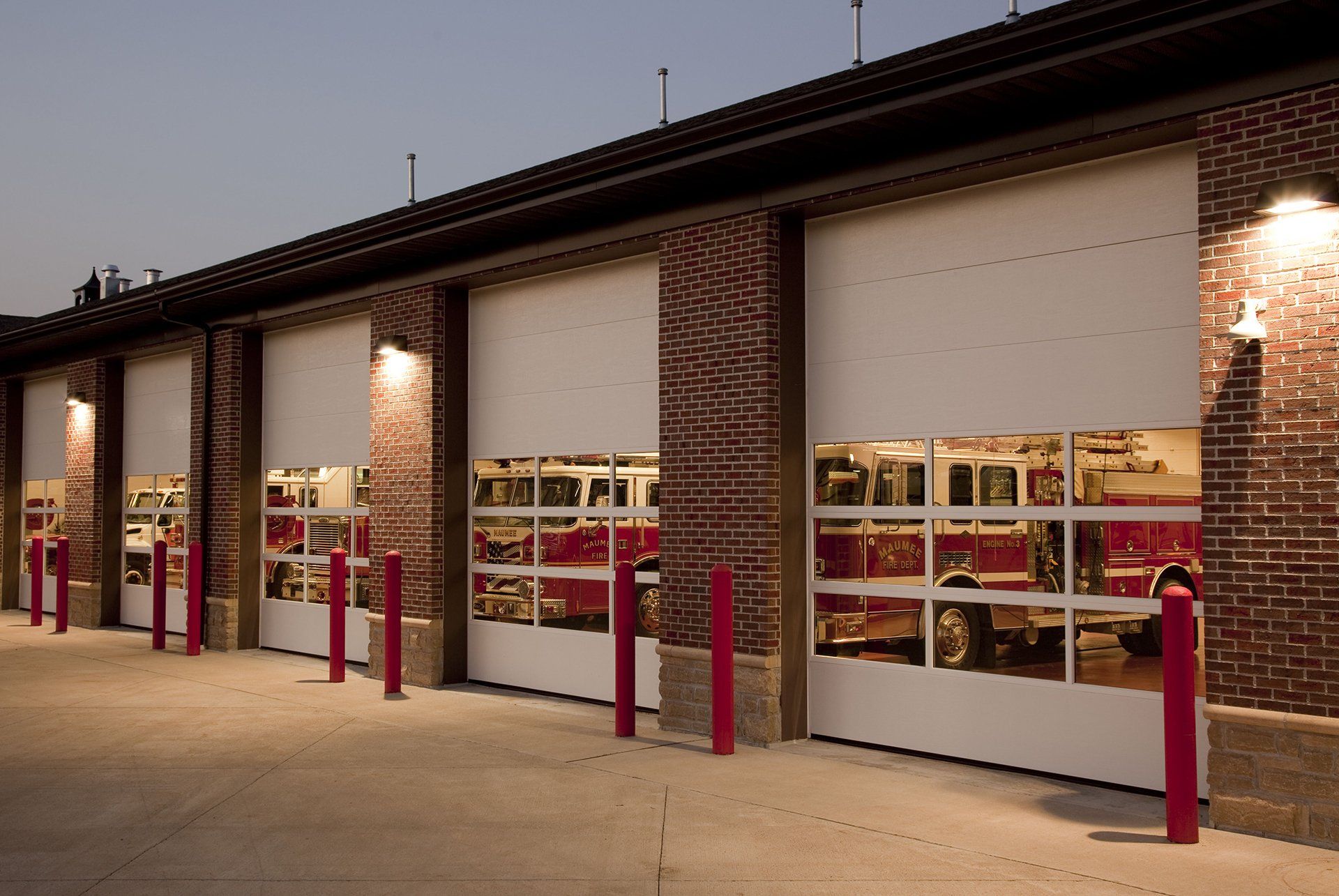

2032 in Polar White with Full-View Sections

Button
Slide title

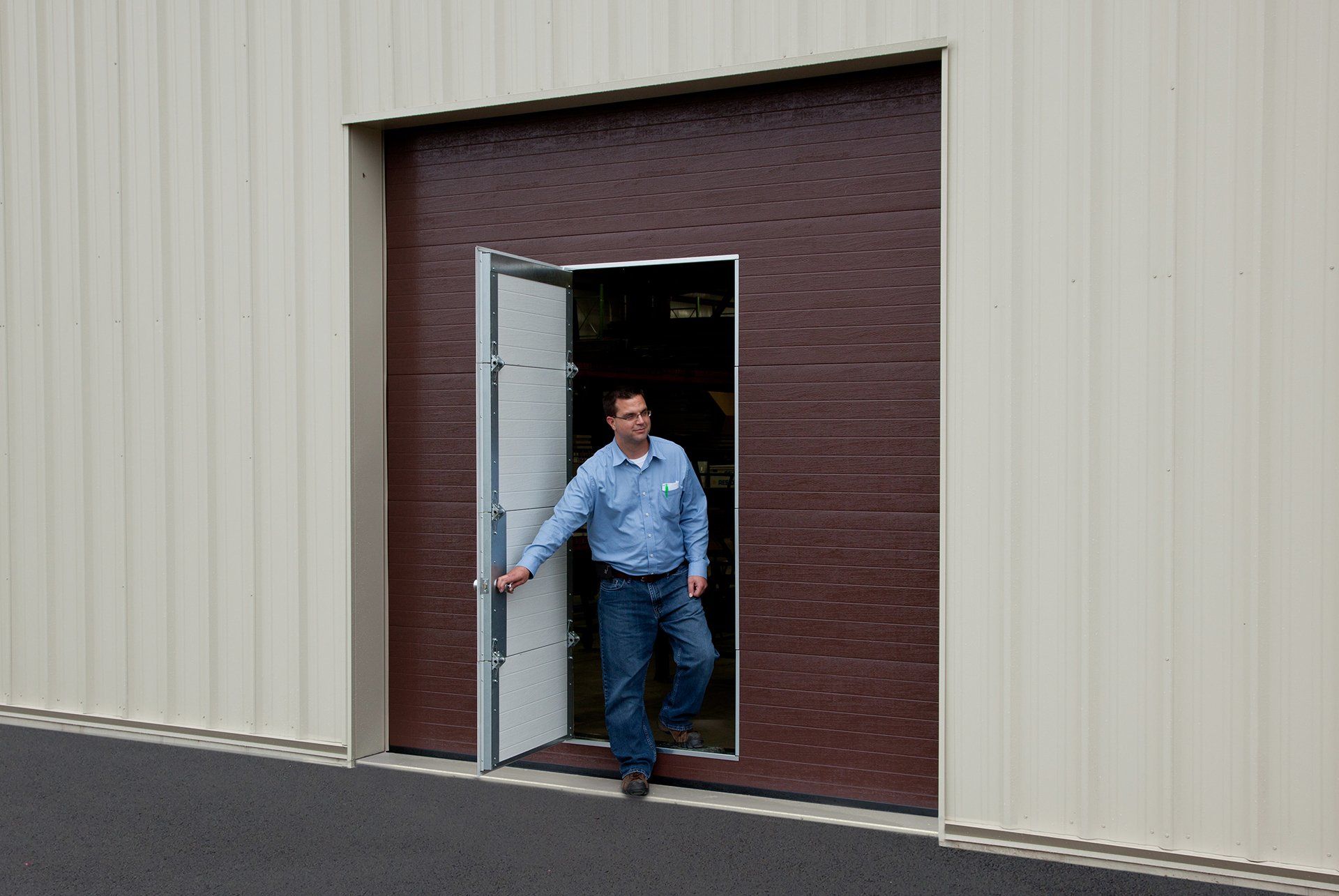

2016 in Brown with Pass Door

Button
Slide title

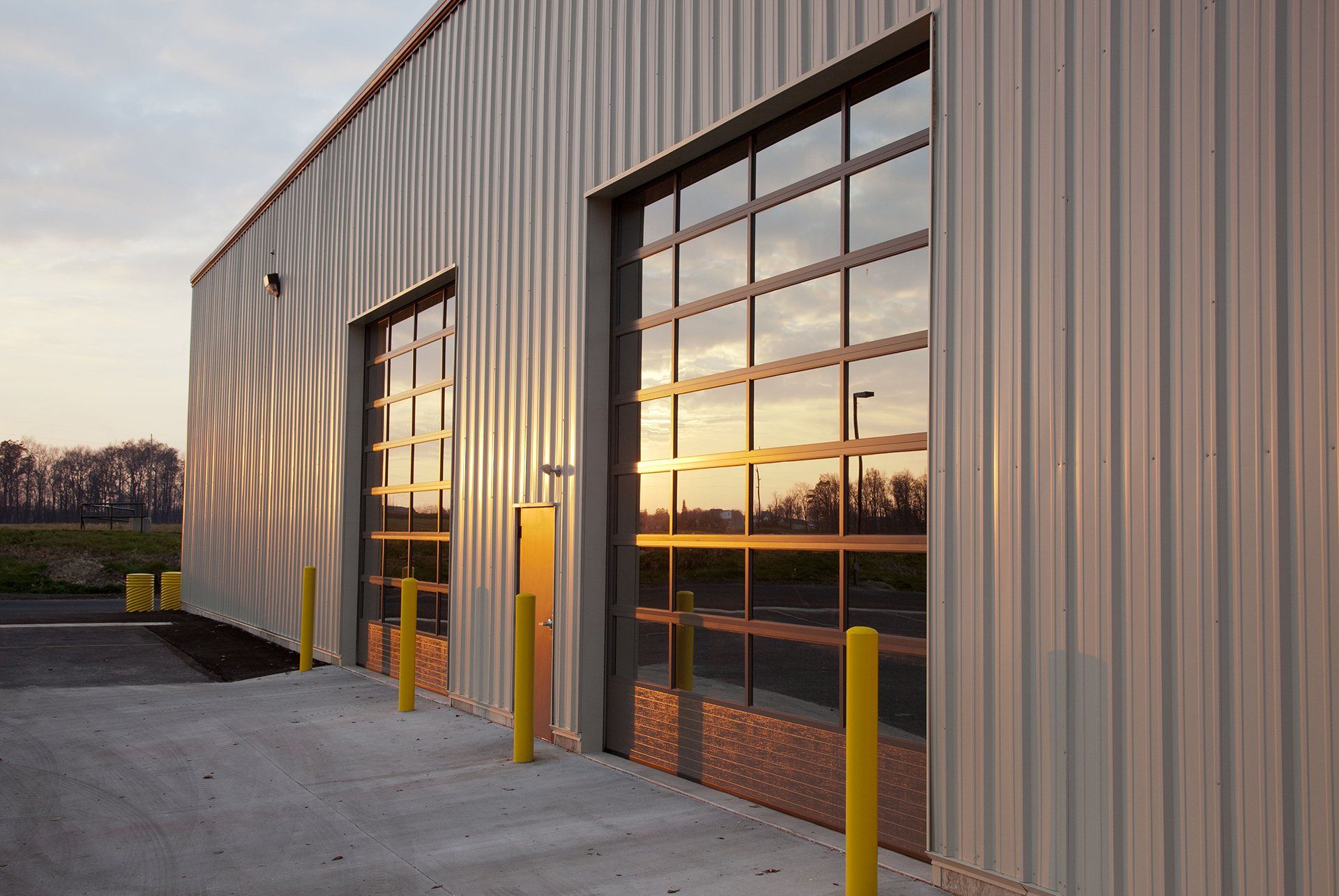

2016 in Bronze with Full-View Sections

Button
Slide title

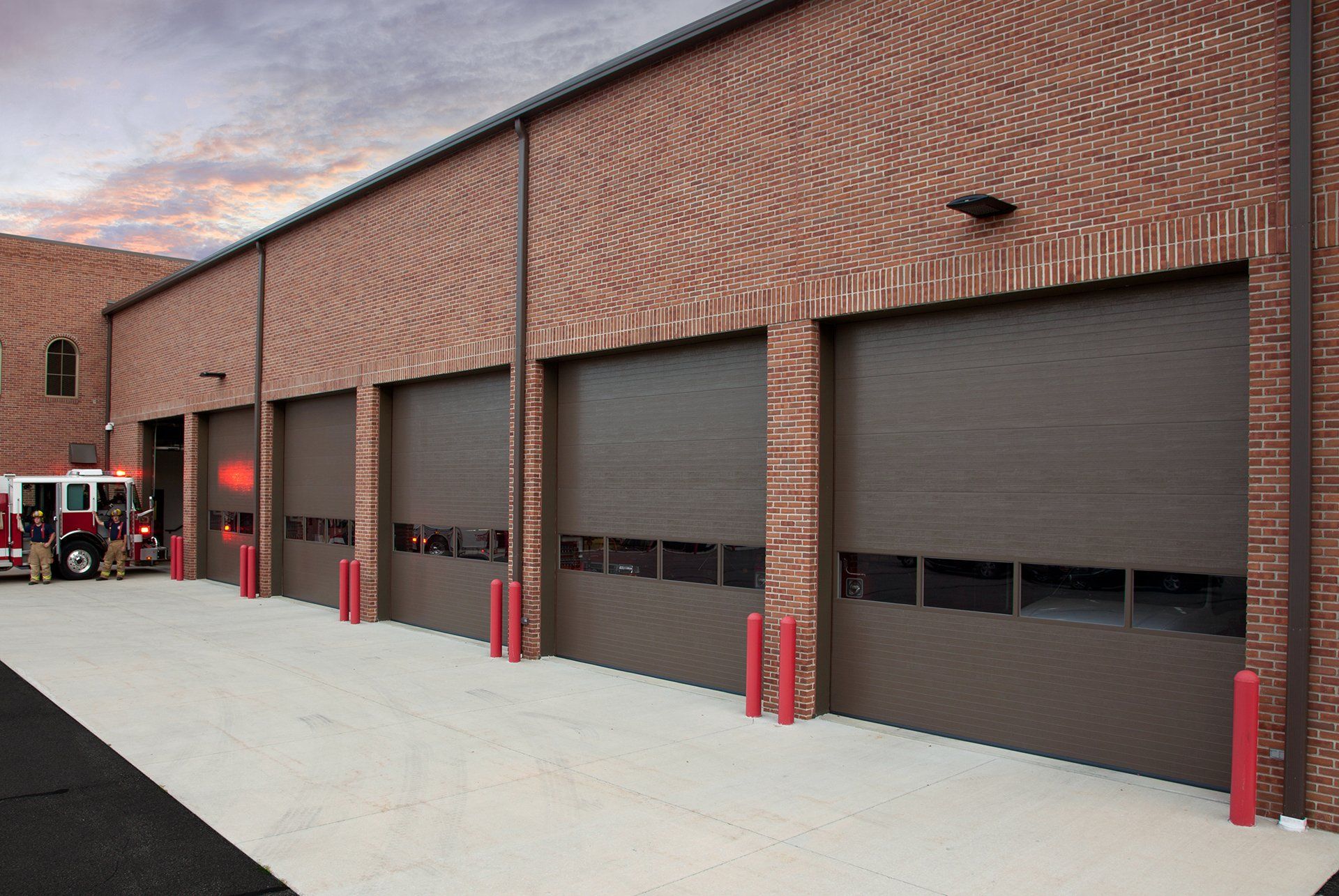

2016 in Bronze with Full-View Section

Button

The strength to keep out
noise and weather.

INSULATED STEEL 2000 SERIES

Haas Insulated Steel 2000 Series commercial doors will enhance the beauty of your building while insulating and dampening outside noise at the same time. Choosing sectional doors with polyurethane insulation helps improve energy efficiency. 2000 series doors are reinforced with roll-formed galvanized steel struts and double-end hinges, and complies with ANSI/DASMA.

2”-Thick Environmentally Compliant Polyurethane
0.094 Tested U-Factor
Air Infiltration Seal
Full Thermal Break
26-Gauge Galvanized Steel
Available with Wind Load and Impact Options
Available with SelectView Options
19 Color Options
10-Year Rust-Through & Delamination Warranty
10-Year Finish
1-Year Hardware
1-Year Spring

2” or 3” track

Double steel end stiles

Exhaust port

Cam safety device

Spring bumpers

Chain hoist

High cycle springs

High cycle rollers

Glazing (windows)

Aluminum full view section

Pass door

Keyed lock

Operator Options Available

Technical Spec Sheets

CREATE YOUR DOOR LEARN MORE

Tested U-Factor validated by DASMA Thermal Performance Verification Program

2000 SERIES MODELS

Door Specs

Section Skins & End Stiles

Color & Window Options

2010

0.094 Tested U-Factor

Max Height: 18'-2"

Max Width: 16'-0"

Inside: 26 GA V Groove Woodgrain Steel

Outside: 26 GA Flush Woodgrain Steel

Extruded End Cap

All colors except bi-directional wood grains

Window Options

2012

0.094 Tested U-Factor

Max Height: 18'-2"

Max Width: 16'-0"

Inside: 26 GA V Groove Woodgrain Steel

Outside: 26 GA V Groove Woodgrain Steel

Extruded End Cap

All colors except bi-directional wood grains

Window Options

2014

0.094 Tested U-Factor

Max Height: 38'-2"

Max Width: 32'-0"

Inside: 26 GA V Groove Woodgrain Steel

Outside: 26 GA Flush Woodgrain Steel

Steel End Stiles

All colors except bi-directional wood grains

Window Options

2016

0.094 Tested U-Factor

Max Height: 38'-2"

Max Width: 32'-0"

Inside: 26 GA V Groove Woodgrain Steel

Outside: 26 GA V Groove Woodgrain Steel

Steel End Stiles

All colors except bi-directional wood grains

Window Options

2032

0.094 Tested U-Factor

Max Height: 24'-2"

Max Width: 32'-0"

Inside: 26 GA V Groove Woodgrain Steel

Outside: 20 GA Flush Smooth Steel

Steel End Stiles

Polar White & Brown

Window Options

2033

0.094 Tested U-Factor

Max Height: 38'-2"

Max Width: 32'-0"

Inside: 26 GA V Groove Woodgrain Steel

Outside: 20 GA V Groove Smooth Steel

Steel End Stiles

Polar White & Brown

Window Options

2032-20

0.094 Tested U-Factor

Max Height: 24'-2"

Max Width: 32'-0"

Inside: 20 GA V Groove Smooth Steel

Outside: 20 GA Flush Smooth Steel

Steel End Stiles

Polar White & Brown

Window Options

2033-20

0.094 Tested U-Factor

Max Height: 38'-2"

Max Width: 32'-0"

Inside: 20 GA V Groove Smooth Steel

Outside: 20 GA V Groove Smooth Steel

Steel End Stiles

Polar White & Brown

Window Options

2060 2072 2082

0.094 Tested U-Factor

Max Height: 24'-2"

Max Width: 32'-0"

Inside: 26 GA V Groove Woodgrain Steel

Outside: 26 GA Ribbed Short Panel Woodgrain Steel

Extruded End Cap

All colors

2060 Windows
2072 Windows

2082 Windows

2061 2071 2081

0.094 Tested U-Factor

Max Height: 24'-2"

Max Width: 32'-0"

Inside: 26 GA V Groove Woodgrain Steel

Outside: 26 GA Recessed Short Panel Woodgrain Steel

Extruded End Cap

All colors

2060 Windows

2072 Windows

2082 Windows

2063 2073

0.094 Tested U-Factor

Max Height: 18'-2"

Max Width: 16'-0"

Inside: 26 GA V Groove Woodgrain Steel

Outside: 26 GA Recessed Long Panel Woodgrain Steel

Extruded End Cap

All colors

2063 Windows

2073 Windows

2064 2074

0.094 Tested U-Factor

Max Height: 18'-2"

Max Width: 16'-0"

Inside: 26 GA V Groove Woodgrain Steel

Outside: 26 GA Ribbed Long Panel Woodgrain Steel

Extruded End Cap

All colors

2064 Windows

2074 Windows

2070 2067 2087

0.094 Tested U-Factor

Max Height: 24'-2"

Max Width: 32'-0"

Inside: 26 GA V Groove Woodgrain Steel

Outside: 26 GA Raised Ranch Panel Woodgrain Steel

Extruded End Cap

All colors

2070 Windows

2067 Windows

2087 Windows

2080 2068 2078

0.094 Tested U-Factor

Max Height: 24'-2"

Max Width: 32'-0"

Inside: 26 GA V Groove Woodgrain Steel

Outside: 26 GA Raised Standard Panel Woodgrain Steel

Extruded End Cap

All colors

2080 Windows

2068 Windows

2078 Windows

2090 2069 2079

0.094 Tested U-Factor

Max Height: 24'-2"

Max Width: 32'-0"

Inside: 26 GA V Groove Woodgrain Steel

Outside: 26 GA Raised Sculptured Panel Woodgrain Steel

Extruded End Cap

All colors

2090 Windows

2069 Windows

2079 Windows

Note: Certain weights and/or applications may limit the size allowed

2000 SERIES MODELS

Untitled Document

Model/Spec Sheet	Panel	Tested U-Factor	Max Width	Max Height	End Stile	Interior Skin	Exterior Skin	Colors	Windows
2010		0.094	18’-2”	16’-0”	Extruded End Cap	26 GA V-Groove Woodgrain Steel	26 GA Flush Woodgrain Steel	All Colors except Bi-Directional wood grains	Window Options
2012		0.094	18’-2”	16’-0”	Extruded End Cap	26 GA V-Groove Woodgrain Steel	26 GA V-Groove Woodgrain Steel	All Colors except Bi-Directional wood grains	Window Options
2014		0.094	38’-2”	32’-0”	16 GA Steel	26 GA V-Groove Woodgrain Steel	26 GA Flush Woodgrain Steel	All Colors except Bi-Directional wood grains	Window Options
2016		0.094	38’-2”	32’-0”	16 GA Steel	26 GA V-Groove Woodgrain Steel	26 GA V-Groove Woodgrain Steel	All Colors except Bi-Directional wood grains	Window Options
2032		0.094	24’-2”	32’-0”	16 GA Steel	26 GA V-Groove Woodgrain Steel	20 GA Flush Smooth Steel	Polar White & Brown	Window Options
2033		0.094	38’-2”	32’-0”	16 GA Steel	26 GA V-Groove Woodgrain Steel	20 GA V-Groove Smooth Steel	Polar White & Brown	Window Options
2032-20		0.094	24’-2”	32’-0”	16 GA Steel	20 GA V-Groove Smooth Steel	20 GA Flush Smooth Steel	Polar White & Brown	Window Options
2033-20		0.094	38’-2”	32’-0”	16 GA Steel	20 GA V-Groove Smooth Steel	20 GA V-Groove Smooth Steel	Polar White & Brown	Window Options
2060 2072 2082		0.094	24-’2”	32’-0”	Extruded End Cap	26 GA V-Groove Woodgrain Steel	26 GA Ribbed Short Panel Woodgrain Steel	All Colors except Bi-Directional American Walnut & English Oak on 2072 & 2082	2060 2072 2082
2061 2071 2081		0.094	24-’2”	32’-0”	Extruded End Cap	26 GA V-Groove Woodgrain Steel	26 GA Recessed Short Panel Woodgrain Steel	All Colors except Bi-Directional American Walnut & English Oak on 2071 & 2081	2061 2071 2081
2063 2073		0.094	18-’2”	16’-0”	Extruded End Cap	26 GA V-Groove Woodgrain Steel	26 GA Recessed Long Panel Woodgrain Steel	All Colors except Bi-Directional American Walnut & English Oak on 2073	2063 2073
2064 2074		0.094	18-’2”	16’-0”	Extruded End Cap	26 GA V-Groove Woodgrain Steel	26 GA Ribbed Long Panel Woodgrain Steel	All Colors except Bi-Directional American Walnut & English Oak on 2074	2064 2074
2070 2067 2087		0.094	24-’2”	32’-0”	Extruded End Cap	26 GA V-Groove Woodgrain Steel	26 GA Raised Ranch Panel Woodgrain Steel	All Colors except Bi-Directional American Walnut & English Oak	2070 2067 2087
2080 2068 2078		0.094	24-’2”	32’-0”	Extruded End Cap	26 GA V-Groove Woodgrain Steel	26 GA Raised Standard Panel Woodgrain Steel	All Colors except Bi-Directional American Walnut & English Oak	2080 2068 2078
2090 2069 2079		0.094	24-’2”	32’-0”	Extruded End Cap	26 GA V-Groove Woodgrain Steel	26 GA Raised Sculptured Panel Woodgrain Steel	All Colors except Bi-Directional American Walnut & English Oak	2090 2069 2079
Note: Certain weights and/or applications may limit the size allowed

TECHNICAL INFORMATION

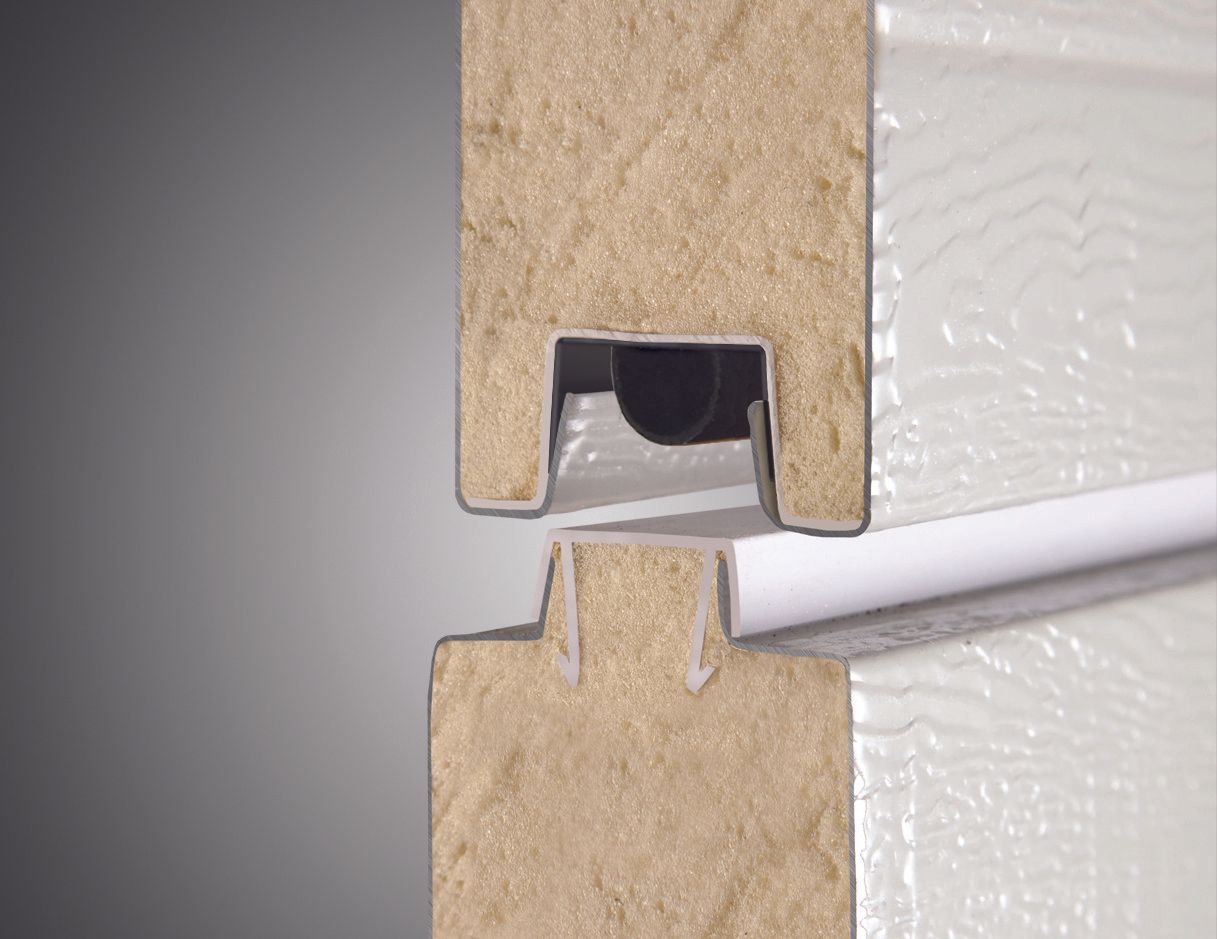

FULL THERMAL BREAK: A full thermal break is used in the tongue-and-groove construction of all commercial insulated doors. This rigid vinyl extrusion seals the joints and minimizes metal-to-metal contact between door sections, which limits the transfer of temperature. This also provides optimum water and wind resistance.

Button

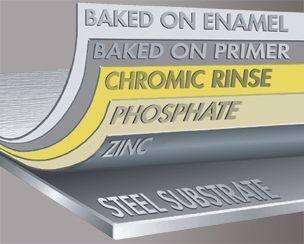

UNIQUE PAINT SYSTEM: All Haas steel garage doors include a three-tier, corrosion-resistant protective paint system with a polyurethane primer and durable polyester finish coat on the interior and exterior. Haas Door's paint thickness is one of the highest in the industry and many of the 2000 Series doors are available in 19 colors.

Button

AIR INFILTRATION SEAL: 2000 series doors include Air Infiltration Seals, which exceed the ASHRAE 90.1 Standard when installed with standard bottom seal and commonly available rigid/flexible vinyl door stop.

Button
WEATHER SEAL: A full-length, one-piece heavy vinyl bottom weather seal prevents infiltratin of air, rain, snow and debris. The seal reduces impact shocks when the door is closed against concrete flooring.

Button

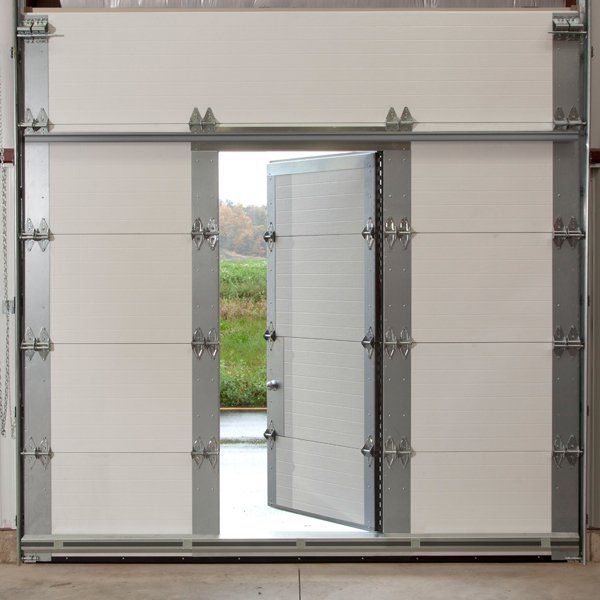

PASS DOOR: Custom pass doors are available on the 2000 Series.

Button
FULL VIEW: Optional full view sections provide maximum light and visibility with available insulated glazing.

Button

HARD-WORKING HARDWARE: The track is 2" or 3" galvanized steel, depending on door size, with bracket mount for wood jambs or continuous reverse mounting for steel jambs. For reverse angle-mount track, door widths are 2" wider than the opening. Track rollers are 2" or 3" case-hardened inner and outer steel races with 10-ball pre-lubricated bearings. Hinges, brackets and reinforcing struts are hot-dipped galvanized steel. Counterbalancing springs are torsion type, computer calibrated to match door load. This provides a 10,000-cycle life at the minimum; optional spring wires can achieve 25,000, 50,000 and 100,000 cycle requirements. Springs are wound from oil-tempered wire and mounted on a continuous cross header tube or solid shaft, as determined by torque load.

Button
THE E-STRUT AND WIND LOAD: The E-Strut is the next generation of strut design. Conceived, developed and manufactured by Haas Door, testing has proven the E-Strut to outperform traditional struts. This patented design is used on all Haas Door products. The innovative E-Strut is intelligently designed to require half as many tek screws as u-bars and struts currently in use. This means less time attaching struts in the field for installers and a savings in labor expense for our dealers. E-Struts are available in 2", 3", 4" and 6" widths and come standard in a galvanized finish. The 4" and 6" sizes do not require hinge straps. Haas Door products are available in a wide range of design pressures for wind load requirements. Contact your local Haas Door dealer for more information about wind load requirements in your area.

Button

THE STRENGTH TO KEEP OUT NOISE AND WEATHER: Haas commercial insulated doors stand up to the elements while dramatically decreasing exterior noise and enhancing the overall aesthetics of your building at the same time. Choosing one of our insulated doors will help increase energy savings, as our environmentally compliant polyurethane provides one of the best tested U-Factors available in sectional doors. Haas garage doors are made from steel that contains 80% recycled material. They are reinforced with roll-formed galvanized steel struts and double-end hinges, as required to meet wind load specifications and to comply with ANSI/DASMA 102. The protective coating system is found on both the interior and exterior steel.

Button
ENVIRONMENTALLY COMPLIANT POLYURETHANE CONSTRUCTION: The polyurethane foam in a Haas garage door section is fully enclosed inside the steel skins. This design puts the insulation properties of polyurethane foam far ahead of polystyrene foam for performance and value. Polyurethane foam is a two-part system. It begins with two chemical blends that when mixed together expand and cure to fill the garage door panel. During the expansion, the foam completely fills the inside of the panel and becomes fully adhered to the steel skins of the garage door panel to form a composite structure that is of exceptional strength and rigidity. Polyurethane foams are very stable when encapsulated inside a garage door section. Insulating with polyurethane provides a superior product with higher insulation properties and a stronger unitized section.

Button

IMPACT POLYCARBONATE: is available in Clear with UV rating, Dark Gray, Bronze, Frosted, and Pebble. Polycarbonate requires special cleaning methods. See “Downloads” at right for instructions.

Button

STANDARD COLORS

Polar White

Button
Almond

Button
Sahara Tan
Button
Sandstone

Button
Bronze

Button
Brown

Button
Espresso
Button
Gray

Button
Charcoal

Button
Carbon Black
Button

Hunter Green and all Trinar® colors have been discontinued.

All colors are not available in every model. Refer to chart for color availability. Colors as shown are not exact due to differences in monitors. For accurate color samples, contact a Haas Door dealer for a color selector. Carbon Black includes a cool chemistry paint finish but is not recommended for projects with extreme exposures to heat and sunlight.

WOOD GRAIN COLORS

BI-DIRECTIONAL WOOD GRAINS

A vertical wood grain pattern on the panel and stile contrasting with a horizontal pattern on the rails creates the appearance of a real wood door. Bi-directionals feature a light stucco embossment.

Ash

Button
English Oak

Button
American Walnut*

Button
Mahogany

Button

* Bi-Directional American Walnut & English Oak are not available on 70, 71, 72, 73, 74, 80, 81, 82 & 90 models.

UNI-DIRECTIONAL WOOD GRAINS

These authentic colors feature a woodgrain pattern that runs horizontally to complement any of our insulated steel models. Uni-directionals feature a wood grain embossment.

Ash

Button
English Oak

Button
American Walnut

Button
Mahogany

Button
Graywood
Button

GLASS OPTIONS (more info)

Some glass options may be temporarily unavailable.

Please check with your dealer for real time availability.

Clear/Clear

Button
Light Gray/Clear
Button
Dark Gray/Clear
Button
Clear/Frosted

Button
Light Gray/Frosted
Button
Dark Gray/Frosted
Button
Bronze/Clear
Button
Clear/Low-E
Button
Dark Gray/Dark Gray
Button
Bronze/Frosted
Button
Clear/Solarban 70
Button
Obscure/Clear
Button
Obscure/Frosted
Button
*Translucent Mirror (Dark in Garage)
Button
*Translucent Mirror (Light in Garage)
Button

*Translucent Mirror glass option appearance varies greatly depending on light location. When the inside of the garage is dark, it allows the mirror properties of the glass to show, and strong reflection happens, limiting opacity. However, when it is lighter inside the garage than outside, the glass becomes mostly transparent.
